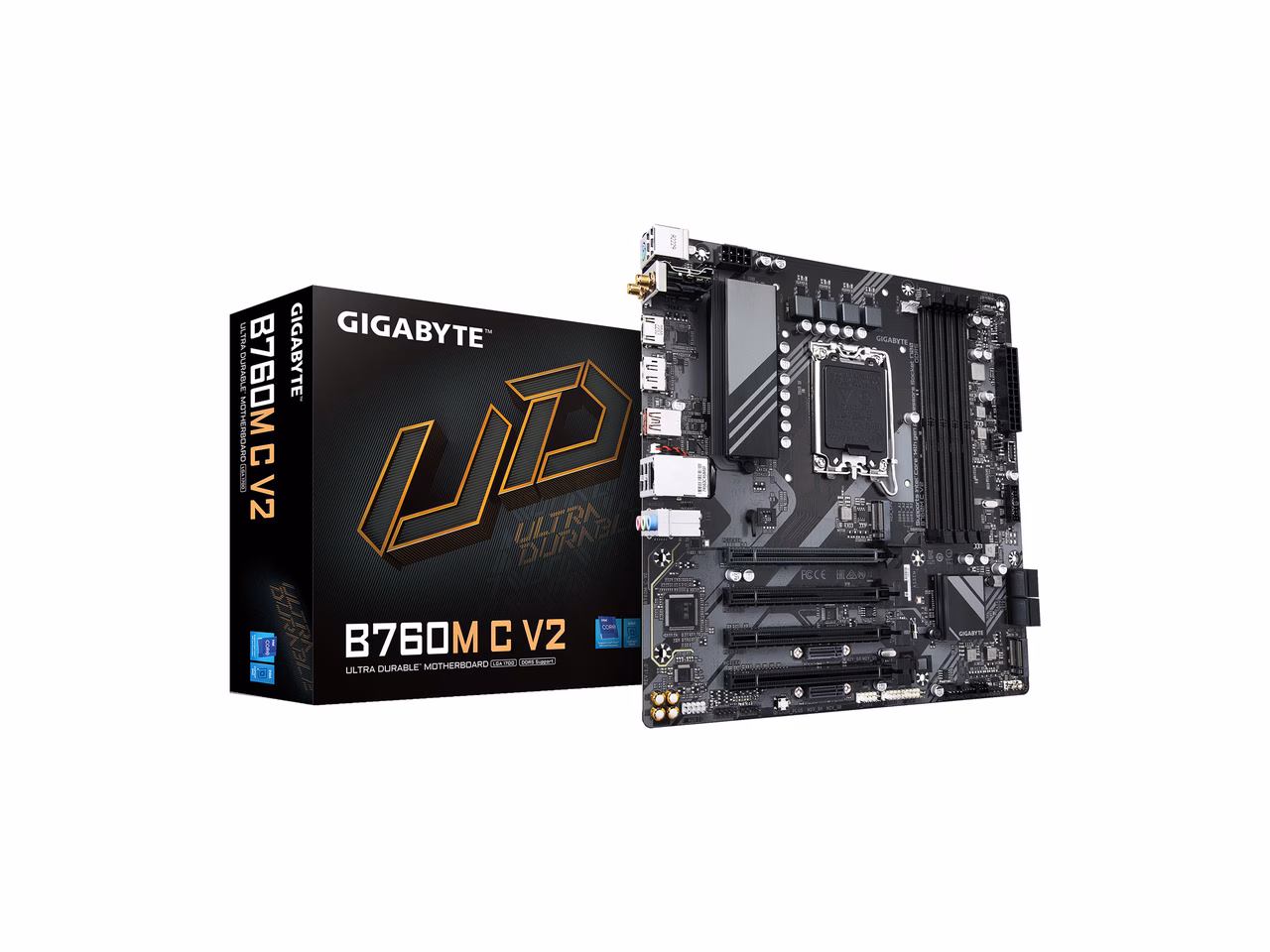

GIGABYTE B760M C V2 LGA 1700 Intel B760 M-ATX Motherboard with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen 2x2 Type-C, WiFi 6, 1GbE LAN, Q-Flash Plus, EZ-Latch

Name: GIGABYTE B760M C V2 LGA 1700 Intel B760 M-ATX Motherboard with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen 2x2 Type-C, WiFi 6, 1GbE LAN, Q-Flash Plus, EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-506R
Price: 81.21 USD
Availability: InStock

★★★★★ No reviews yet

Intel LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel Core Series Processors DDR5 Compatible: Dual Channel DDR5, 4 DIMMs

$81.21 ~~$139.99~~ Save $58.78

B760M C V2

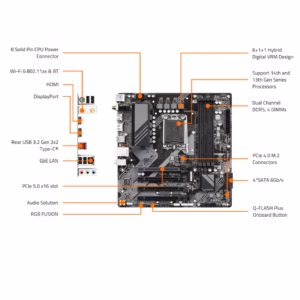

Intel LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: 6+1+1 Hybrid Digital VRM Design
Thermal Design: Enlarged MOSFET Heatsink
Next Gen Connectivity: PCIe 5.0 exansion slot, NVMe PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
Networking: 1GbE LAN, Wi-Fi 6

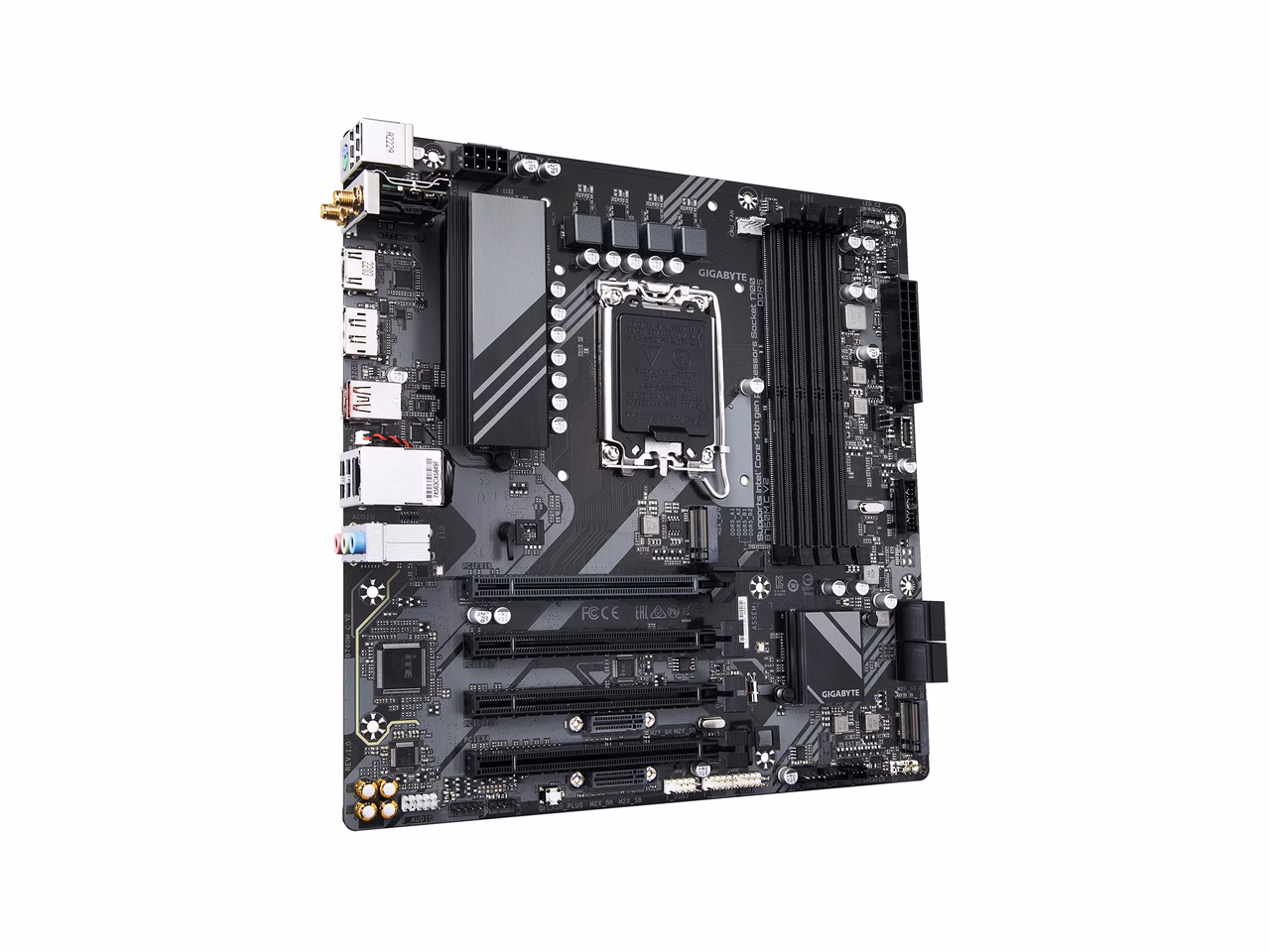

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1700
CPU Type: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset: Intel B760
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported: 192GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Sup
PCI Express 4.0 x16: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) (PCB rev. 1.0) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16: Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Chipset: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels: 7.1 Channels
LAN Chipset: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Max LAN Speed: 1Gbps
Wireless LAN: Realtek Wi-Fi RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH .32 Support for 11ax 80MHz wireless (Actual data rate may vary depending on environment and equipment.)
Bluetooth: Yes

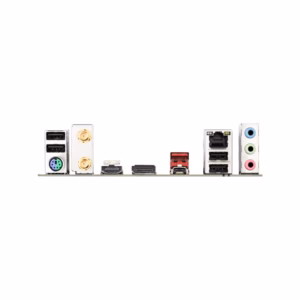

Back I/O Ports: 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors
Other Connectors: 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CM
Windows 11: Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
MPN: B760M C V2
UPC: 889523044179
