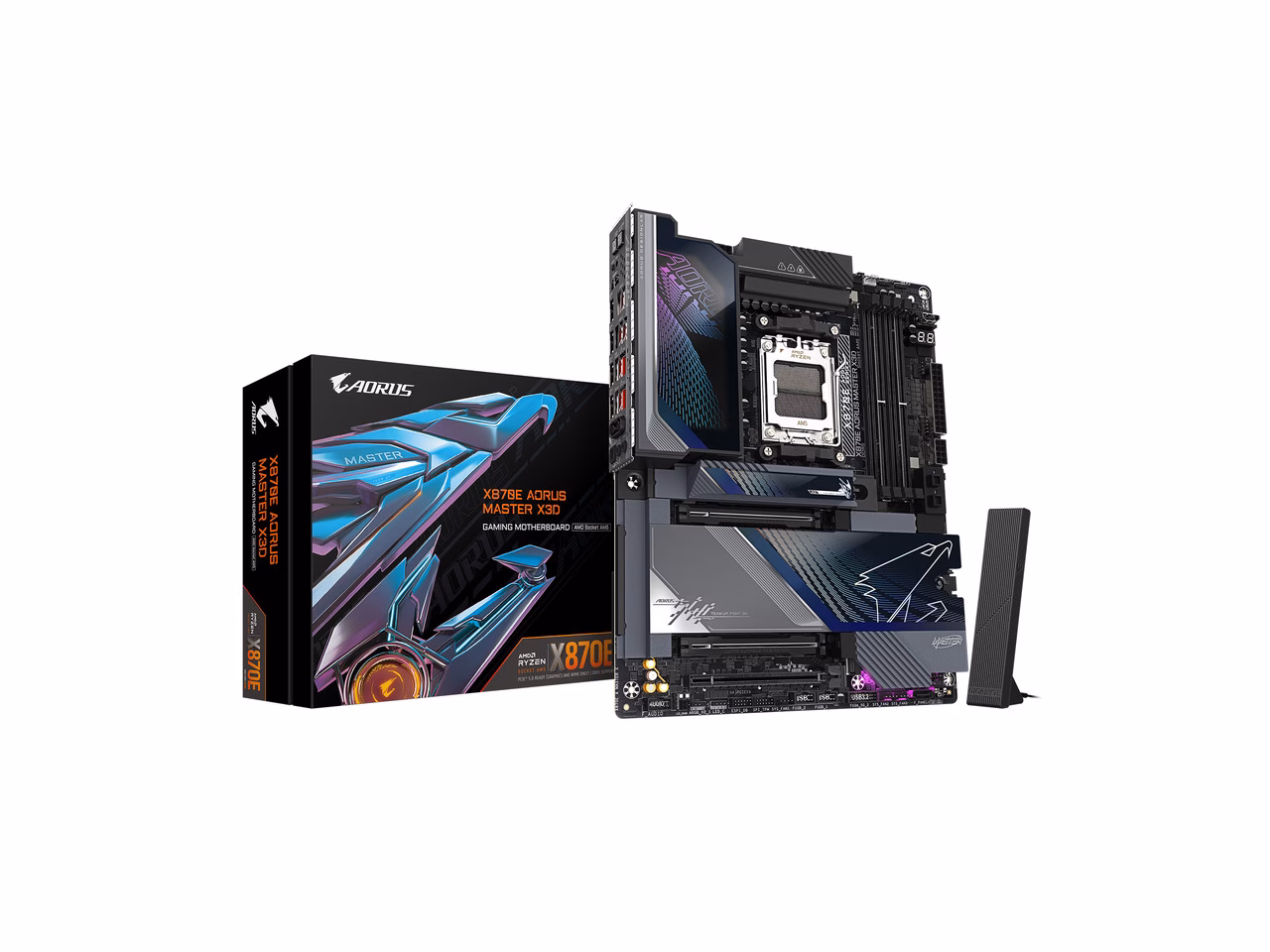

GIGABYTE X870E AORUS MASTER X3D AMD AM5 LGA 1718 ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 18+2+2 Total Power Phase, 5x M.2, PCIe 5.0, USB4 Type-C, WIFI7, 10GbE, PCIe

Name: GIGABYTE X870E AORUS MASTER X3D AMD AM5 LGA 1718 ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 18+2+2 Total Power Phase, 5x M.2, PCIe 5.0, USB4 Type-C, WIFI7, 10GbE, PCIe - GRC | PC Components & Gaming Peripherals
SKU: 13-145-603
Price: 589.99 USD
Availability: InStock
Rating: 3.00 (1 reviews)

★★★★★ 3.0 1 review

AMD Socket AM5: Ready to support Ryzen 9000 /8000/7000 Series Processors. Enhanced Power Solution: Digital Twin 18+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.

$589.99

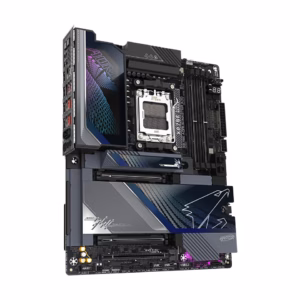

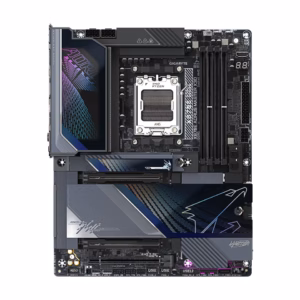

X870E AORUS MASTER X3D

AMD Socket AM5: Ready to support Ryzen 9000 /8000/7000 Series Processors.
Enhanced Power Solution: Digital Twin 18+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
Boost Your Memory Performance: Compatible with DDR5 Memory and supports 4 DIMMS with AMD EXPO Memory Module Support.

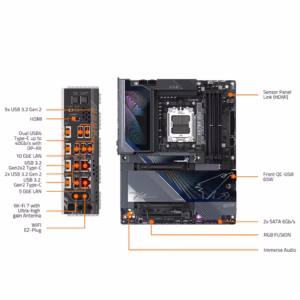

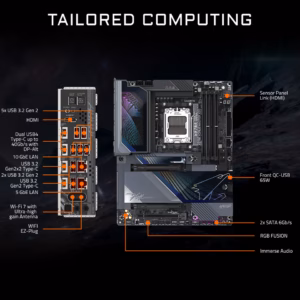

Comprehensive Connectivity: 2x PCIe Gen 5 x16 slot with reinforced PCIe UD armor, 2x PCIe 5.0 M.2 slots, 3x PCIe 4.0 M.2 slots, 2x USB4 Type-C with DP-Alt, 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 7x USB 3.2 Gen 2 Type-A, 65W Front USB-C, Sensor Panel Link (HDMI) for onboard video port for hassle-free in-chassis panel setup.
Smooth Online Experience: WIFI 7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 10 GbE + 5 GbE LAN, and Bluetooth 5.4.

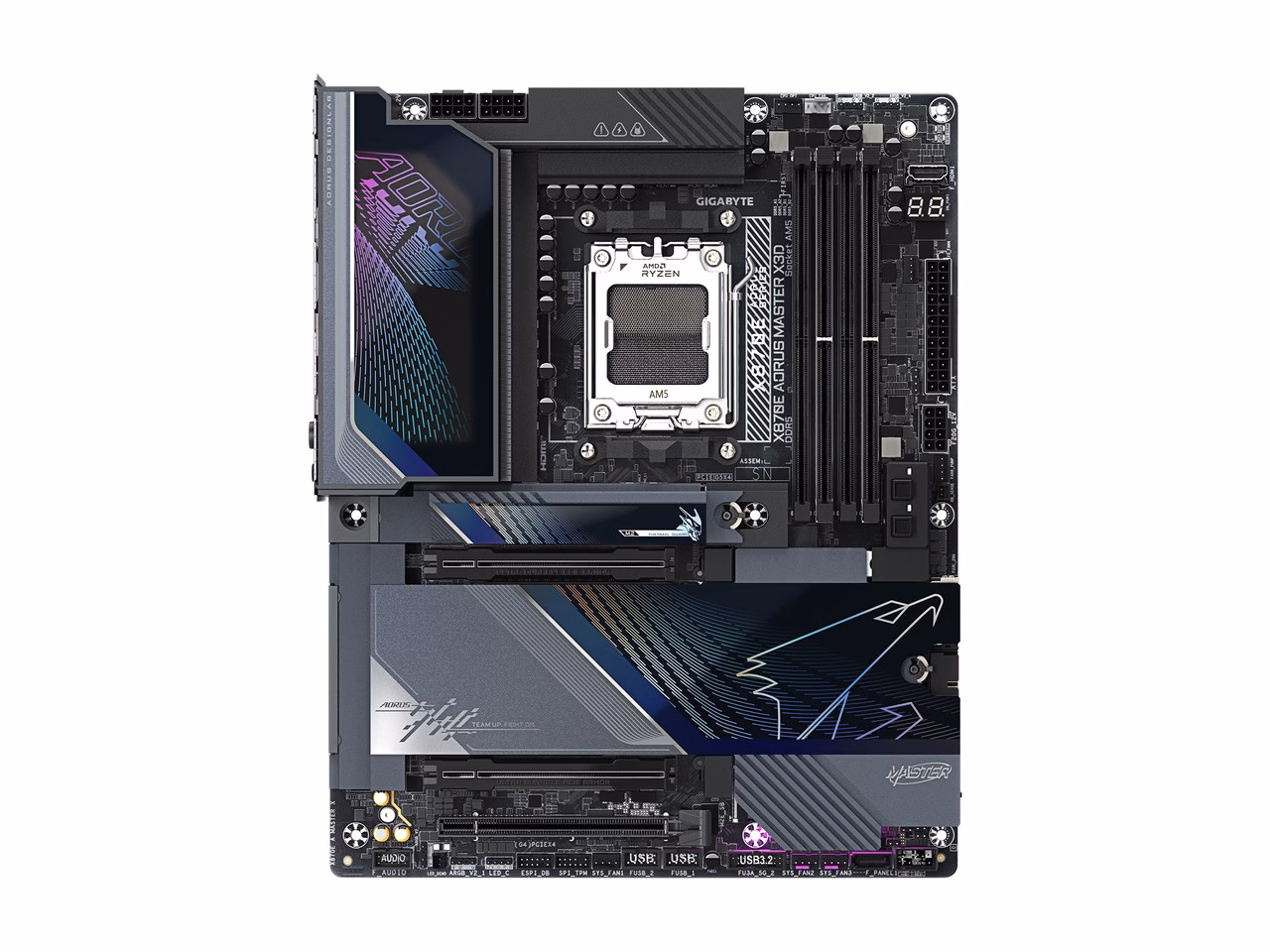

Key features

Specifications

Brand: GIGABYTE
Series: AORUS
CPU Socket Type: AM5
Chipset: AMD X870E
South Bridge: AMD x870E
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 4800
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: AMD EXPO / Intel XMP
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
PCI Express 5.0 x16: 1 x PCI Express 5.0 x16
PCI Express 4.0 x16: 1 x PCI Express 4.0 x16
PCI Express x16: 3 x PCI Express x16
PCI Express x4: 1 x PCI Express x4
Serial ATA (SATA): 2 x SATA 6Gb/s
M.2: 5 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4/x2)
SATA RAID: 0/1
Onboard Video Chipset: AMD Radeon Graphics
Audio Chipset: Realtek ALC1220
Audio Channels: 5.1 Channels
LAN Chipset: Realtek 5GbE, Realtek 10GbE
Second LAN Chipset: Realtek 10GbE LAN chip
Max LAN Speed: 10Gbps + 5Gbps
Wireless LAN: WiFi IEEE 802.11 a / b / g / ac / ax / be
Bluetooth: Yes

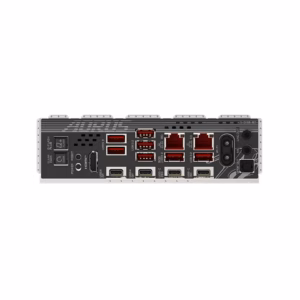

Back I/O Ports: 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x reset button, 1 x power button, 1 x HDMI, 2 x USB4 Type-C, 1 x USB Type-C (USB 3.2 Gen 2), 1 x USB Type-C (USB 3.2 Gen 2x2), 7 x USB 3.2 Gen 2 Type-A, 2 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out
Video Ports: HDMI + 2 x USB Type-C
S-Video: No
HDMI: 1 x HDMI port
RJ45: 2 x RJ45
DisplayPort: 2 x DisplayPort
USB 3.1: 11 x USB 3.1
USB 3.0: 8 x USB 3.0
USB 1.1/2.0: 4 x USB 2.0/1.1 ports
USB Type-C: 2 x USB4 USB Type-C® ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
S/PDIF Out: 1 x Optical
Audio Ports: 3 Ports
Onboard USB: 1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 + 2 x USB 2.0
Form Factor: ATX
LED Lighting: RGB
Dimensions (W x L): 30.5cm x 24.4cm
Power Pin: 24 Pin
Windows 11: Supported
MPN: X870E AORUS MASTER X3D
UPC: 889523056011

Customer reviews

Based on 1 review

Write a review

3.0 ★★★★★

5 star 0% (0)
4 star 0% (0)
3 star 100% (1)
2 star 0% (0)
1 star 0% (0)

Anonymous February 5, 2026
★★★★★
GIGABYTE X870E AORUS MASTER X3D AMD AM5 LGA 1718 ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 18+2+2 Total Power Phase, 5x M.2, PCIe 5.0, USB4 Type-C, WIFI7, 10GbE, PCIe

BIOS Issues & Linux Problems

Overall really liked the board, but the MediaTek WiFi card and BIOS issues were a huge disappointment. Picked up the X870E Aorus Pro X3D which uses the Qualcomm QCNCM865 which has Linux drivers as of Kernel 6.10.

Pros: Feature set is great, design looks good, well thought out connectors, and lots of NVME

Cons: Uses MediaTek MT7927 which has 0 Linux compatibility as of February 2026. Would not take BIOS updates on arrival and forced to return board.
