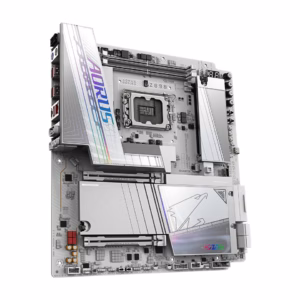

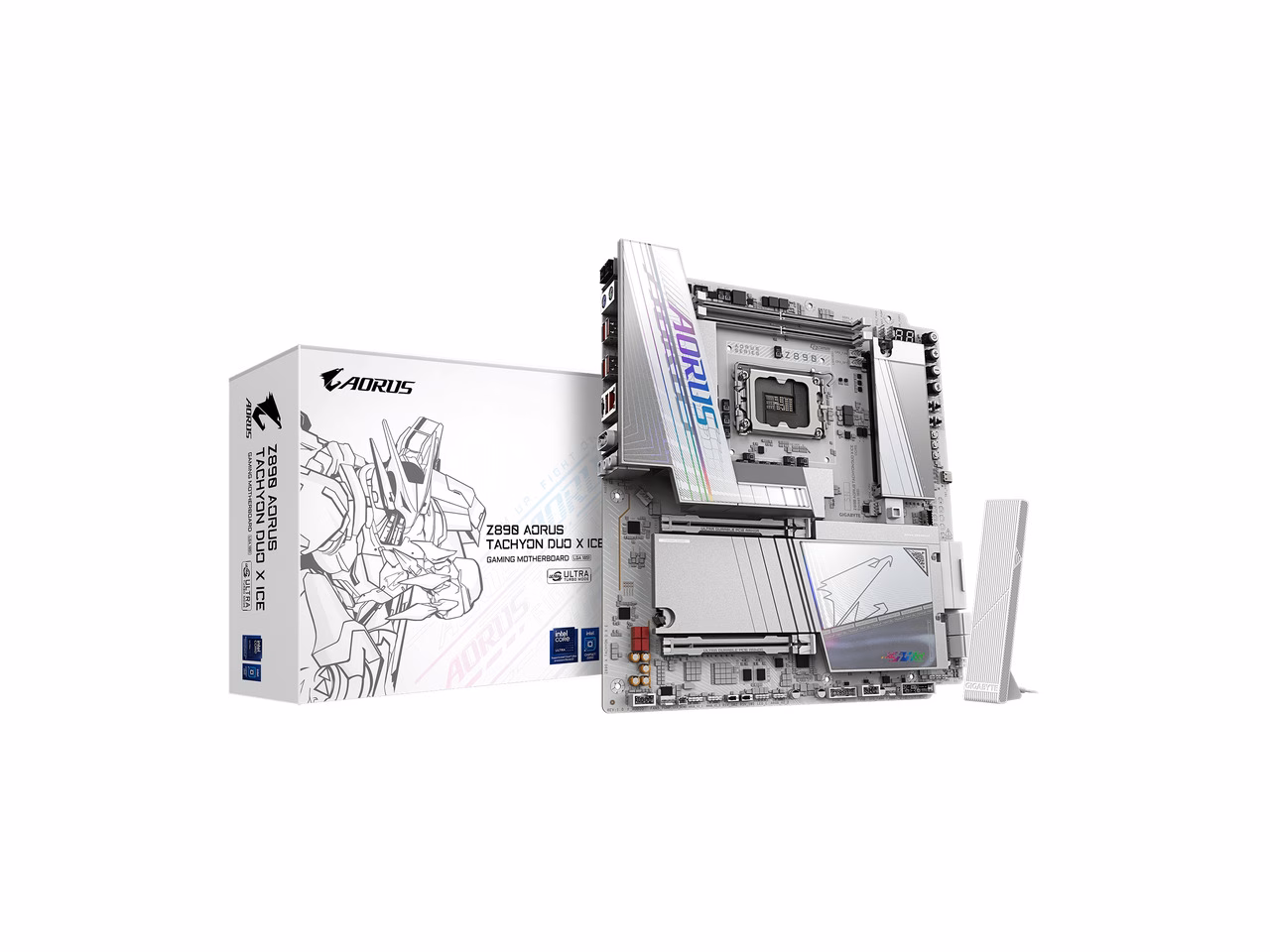

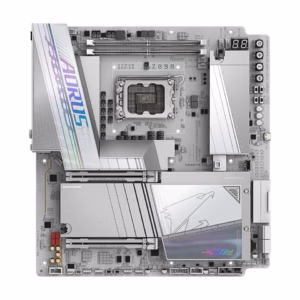

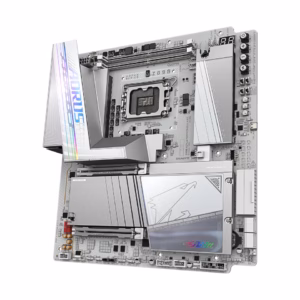

GIGABYTE Z890 AORUS TACHYON DUO X ICE Intel LGA 1851 EATX Motherboard, Support Core Ultra (Series 2), DDR5, 18+1+2 Power Phase, 4x M.2, PCIe 5.0, Thunderbolt 4, WiFi7, 5GbE, EZ-Latch, D5 Bionic Corsa

Name: GIGABYTE Z890 AORUS TACHYON DUO X ICE Intel LGA 1851 EATX Motherboard, Support Core Ultra (Series 2), DDR5, 18+1+2 Power Phase, 4x M.2, PCIe 5.0, Thunderbolt 4, WiFi7, 5GbE, EZ-Latch, D5 Bionic Corsa - GRC | PC Components & Gaming Peripherals
SKU: 13-145-620
Price: 512.99 USD
Availability: InStock

★★★★★ No reviews yet

Intel Socket LGA 1851: Ready to support Intel Core Ultra (Series 2) Processors. Enhanced Power Solution: 18+1+2 Twin Digital VRM Design with 8-Layer PCB and premium chokes and capacitors for steady power delivery.

$512.99 ~~$599.99~~ Save $87

Z890 A TACHYON D X E

Intel Socket LGA 1851: Ready to support Intel Core Ultra (Series 2) Processors.
Enhanced Power Solution: 18+1+2 Twin Digital VRM Design with 8-Layer PCB and premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: True one-piece VRM heatsink with 12 W/mK thermal pads and M.2 Thermal Guard for exceptional heat dissipation.
Boost Your Memory with D5 Duo X: Compatible with 2x DDR5 CU-DIMMs or CQ-DIMMs and Intel XMP for easy memory tuning. D5 Duo X Technology enables double the memory capacity per module and transfer speeds up to 10400 MT/s.
Comprehensive Connectivity: 1x PCIe 5.0 x16 slot with reinforced PCIe UD armor, 1x PCIe 5.0 x8 slot with reinforced PCIe UD armor, 1x PCIe 5.0 M.2 slot, 3x PCIe 4.0 M.2 slots, 1x USB 3.2 Gen 2x2 Type-C port, 5x USB 3.2 Gen 2 Type-A, Front USB-C 20 Gb/s, and Front Thunderbolt 4 port for onboard video port for hassle-free in-chassis panel setup.
Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 5 GbE LAN, and Bluetooth 5.4.

Key features

Specifications

Brand: GIGABYTE
Series: AORUS
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (LGA1851)
Chipset: Intel Z890
South Bridge: Intel Z890 Express
Onboard Video Chipset: Intel HD Graphics
Number of Memory Slots: 2x288pin (DDR5)
Memory Standard: DDR5 10400
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP
ECC Supported: Yes
Buffer Supported: Un-buffered
PCI Express 5.0 x16: 2 x PCI Express 5.0 x16
PCI Express 4.0 x16: 2 x PCI Express 4.0 x16
PCI Express x16: 2 x PCI Express x16
PCI Express x8: 1 x PCI Express x8
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: 4 x M.2 (Support PCIe 5.0 x4, PCIe 4.0 x4 & SATA)
SATA RAID: 0/1/5/10
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
LAN Chipset: Realtek 5GbE
Max LAN Speed: 5Gbps
Wireless LAN: WiFi IEEE 802.11 a / b / g / n / ac / ax / be
Bluetooth: Yes

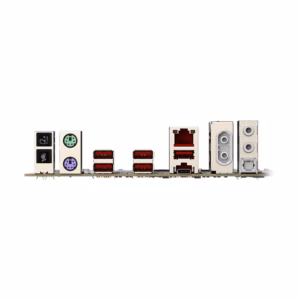

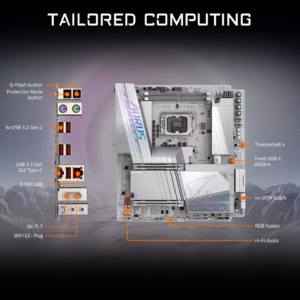

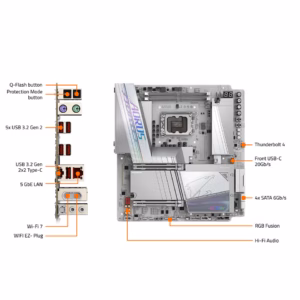

Back I/O Ports: 1 x Q-Flash Plus button, 1 x Protection Mode button, 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 2 x antenna connectors, 1 x USB Type-C port (USB 3.2 Gen 2x2), 5 x USB 3.2 Gen 2 Type-A ports (red), 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
PS/2: 1 x PS/2 keyboard/mouse port
Video Ports: USB Type-C
RJ45: 1 x RJ45
Thunderbolt Ports: 1 x Thunderbolt Port
USB 3.1: 8 x USB 3.1
USB 3.0: 7 x USB 3.0
USB 1.1/2.0: 2 x USB 2.0/1.1 ports
USB Type-C: 1 x USB4® USB Type-C® port onboard, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 1 x USB Type-C® port with USB 3.2 Gen 2 support
S/PDIF Out: 1 x Optical
Audio Ports: 2 Ports
Onboard USB: 1 x USB Type-C® header, with USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 header + 1 x USB 2.0/1.1 header
Windows 11: Supported
Form Factor: Extended ATX
LED Lighting: RGB
Dimensions (W x L): 30.5cm x 28.5cm
Power Pin: 24 Pin
MPN: Z890 A TACHYON D X E
UPC: 889523058602
