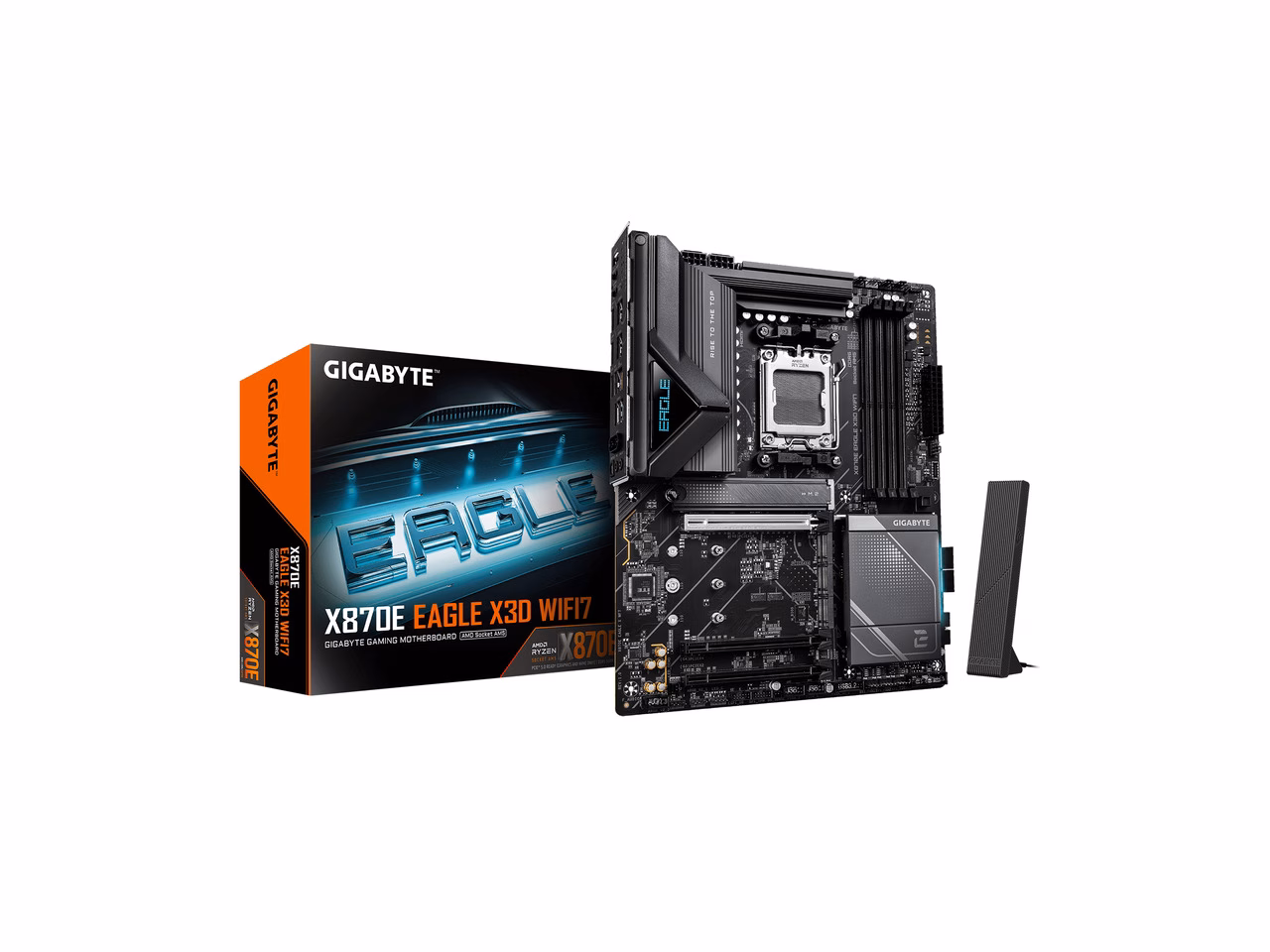

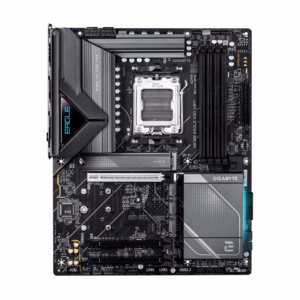

GIGABYTE X870E EAGLE X3D WF7 AMD AM5 ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series, DDR5, 16+2+2 Power Phase, 4x M.2, PCIe 5.0, USB4 Type-C, WIFI7, 5 GbE, PCIe EZ-Latch
AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors. Enhanced Power Solution: Digital Twin 14+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
$267.99
$319.99
Save $52
X870E EAGLE X3D WIFI7
- AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors.
- Enhanced Power Solution: Digital Twin 14+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
- Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
- Boost Your Memory Performance: Compatible with DDR5 Memory and supports 4 DIMMS with AMD EXPO Memory Module Support.
- Comprehensive Connectivity: 1x PCIe Gen5 x16 slot with reinforced PCIe UD armor, 1x PCIe 5.0 M.2 slot, 3x PCIe 4.0 M.2 slots, 2x USB4 Type-C with DP Alt, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 2 Type-A, and Front USB 3.2 Gen 2x2 Type-C for hassle-free setup.
- Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 5 GbE LAN, and Bluetooth 5.4.
Orders are handed to the carrier within 1 business day.
Free Shipping (3–5 business days) · Priority Shipping $9.90 (1–2 business days).
You have 30 days from the day your order is delivered to return unused items in their original condition and packaging. We pay for return shipping: you receive a prepaid label and nothing is deducted from your refund.
Once we receive and inspect the return, the refund goes back to your original payment method within 3 business days. Banks and card issuers may take another 3–10 business days to post it.
Each product is covered by its brand manufacturer's warranty. The term, what is covered, and how to make a claim are set by that manufacturer.
Email [email protected]. We reply within one business day.
Support covers shipping, returns, and order tracking.

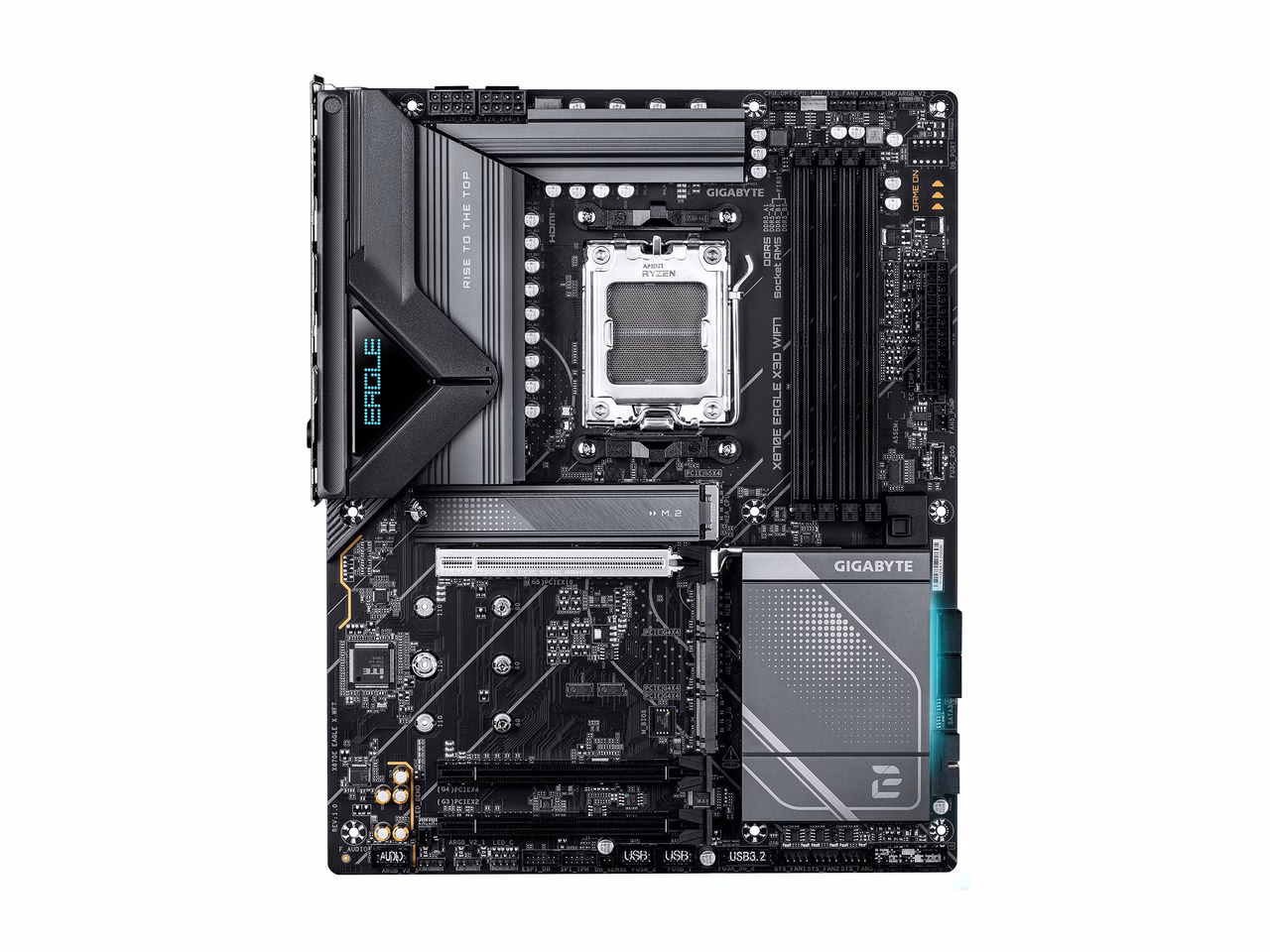

Key features
X870E EAGLE X3D WIFI7
Performance
Thermal
Connectivity
DIY Friendly
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI. X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
One-Click Acceleration:
Faster, fiercer, more precise with a single click. Enhance Up to 25% * Differences in performance enhancement depending on the game.
AI Overclocking For peak performance
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation. * Coming soon
AI Design For MB signal enhancement
Specifications
- Brand
- GIGABYTE
- Series
- EAGLE
- CPU Socket Type
- AM5
- Chipset
- AMD X870E
- South Bridge
- AMD X870E
- Number of Memory Slots
- 4x288pin (DDR5)
- Memory Standard
- DDR5 4800
- Maximum Memory Supported
- 256GB
- Channel Supported
- Dual Channel
- Memory Performance Profile
- AMD EXPO / Intel XMP
- ECC Supported
- Non-ECC
- Buffer Supported
- Un-buffered
- PCI Express 5.0 x16
- 1 x PCI Express 5.0 x16
- PCI Express 4.0 x16
- 1 x PCI Express 4.0 x16
- PCI Express 3.0 x16
- 1 x PCI Express 3.0 x16
- PCI Express x16
- 3 x PCI Express x16
- PCI Express x4
- 1 x PCI Express x4
- Serial ATA (SATA)
- 4 x SATA 6Gb/s
- M.2
- 4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
- SATA RAID
- 0/1/10
- Onboard Video Chipset
- AMD Radeon Graphics
- Audio Chipset
- Realtek ALC1220
- Audio Channels
- 7.1 Channels
- LAN Chipset
- Realtek 5GbE
- Max LAN Speed
- 5Gbps
- Wireless LAN
- WiFi IEEE 802.11 a / b / g / n / ac / ax / be
- Bluetooth
- Yes

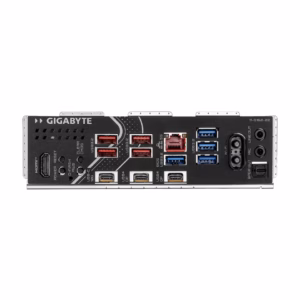

- Back I/O Ports

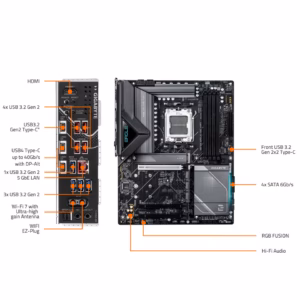

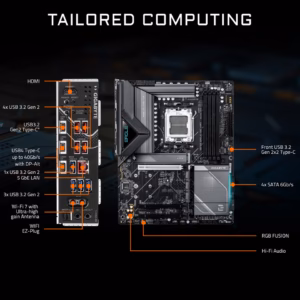

- 1 x HDMI port, 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x Q-Flash Plus button, 4 x USB 3.2 Gen 2 Type-A ports, 1 x USB Type-C port, 2 x USB4 USB Type-C ports, 1 x RJ-45 port, 4 x USB 3.2 Gen 1 ports, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF
- Video Ports
- HDMI + 2 x USB Type-C
- S-Video
- No
- HDMI
- 1 x HDMI port
- RJ45
- 1 x RJ45
- DisplayPort
- 2 x DisplayPort
- USB 3.1
- 13 x USB 3.1
- USB 3.0
- 8 x USB 3.0
- USB 1.1/2.0
- 4 x USB 2.0/1.1 ports
- USB Type-C
- 2 x USB4 USB Type-C ports, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2x2 support
- S/PDIF Out
- 1 x Optical
- Audio Ports
- 3 Ports
- Onboard USB
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 4 x USB 2.0
- Form Factor
- ATX
- LED Lighting
- RGB
- Dimensions (W x L)
- 30.5cm x 24.4cm
- Power Pin
- 24 Pin
- Windows 11
- Supported
- MPN
- X870E EAGLE X3D WIFI7
- UPC
- 889523056844
