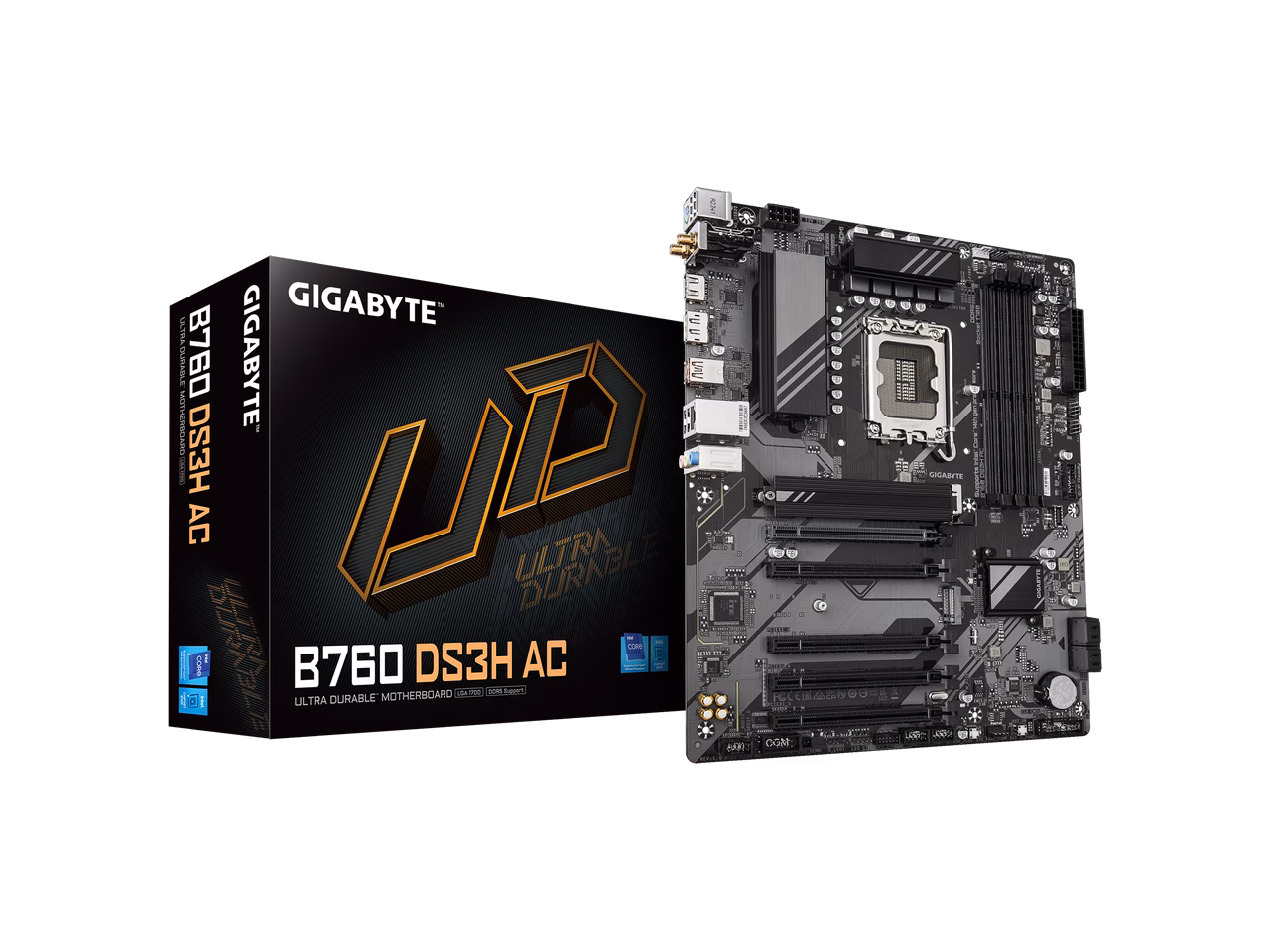

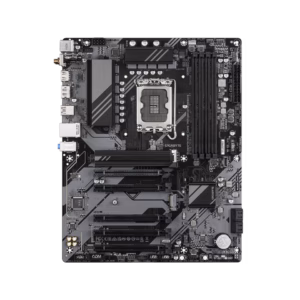

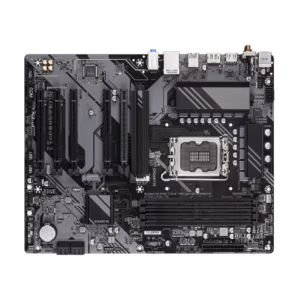

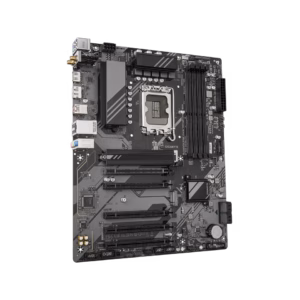

GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s

Name: GIGABYTE B760 DS3H AC LGA 1700 Intel B760 ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, WiFi BLUETOOTH 5.1 SATA 6Gb/s - GRC | PC Components & Gaming Peripherals
SKU: 13-145-497R
Price: 99.99 USD
Availability: InStock

★★★★★ No reviews yet

Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution

$99.99

B760 DS3H AC

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5:4*DIMMs XMP Memory Module Support
Next Generation Storage:2xPCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: GbE LAN & Wi-Fi 802.11ac

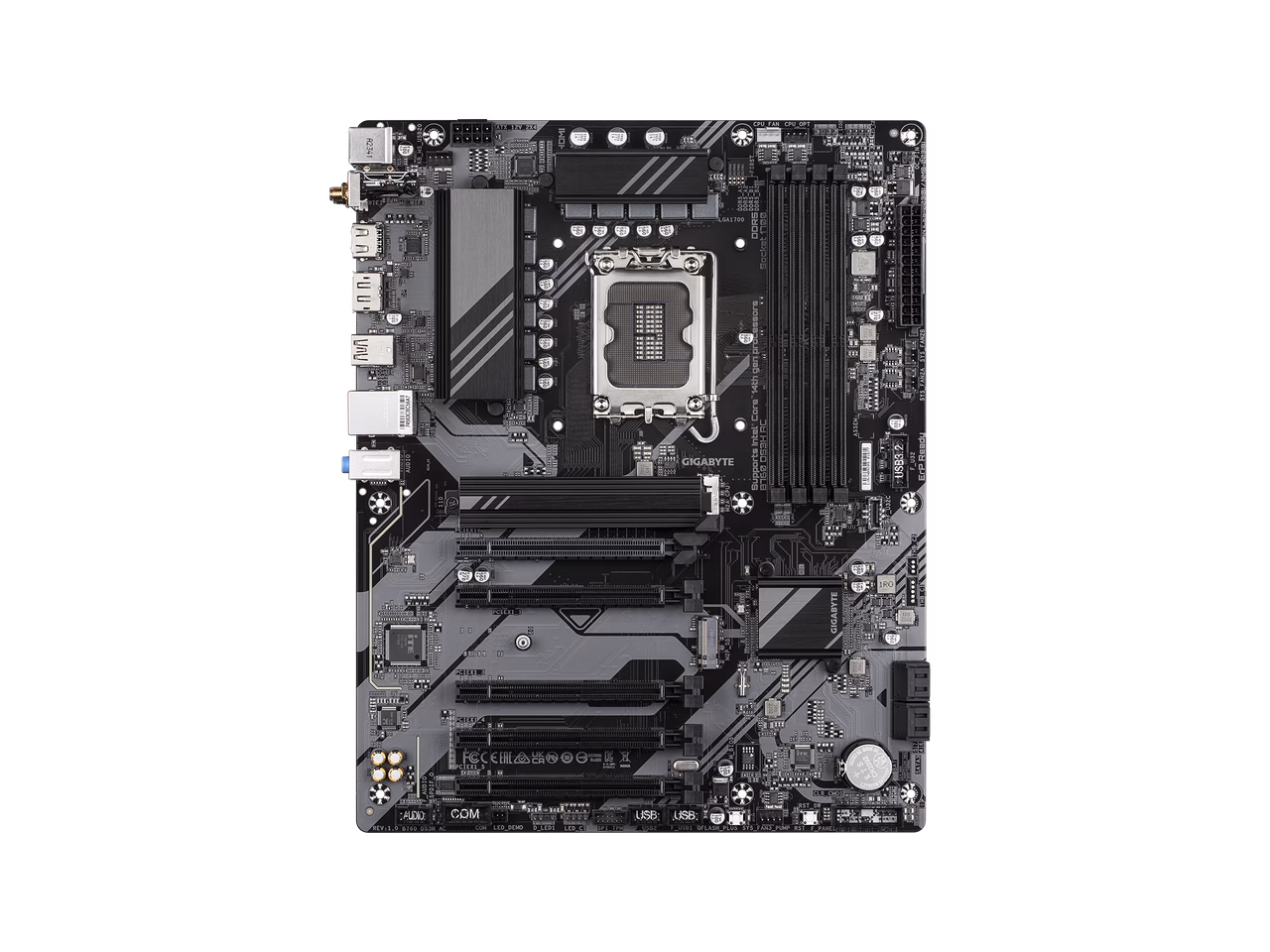

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1700
CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipset: Intel B760
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 4800
Maximum Memory Supported: 192GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate
PCI Express 4.0 x16: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16: Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels: 7.1 Channels
Max LAN Speed: 1Gbps
Wireless LAN: Wi-Fi 802.11 ac

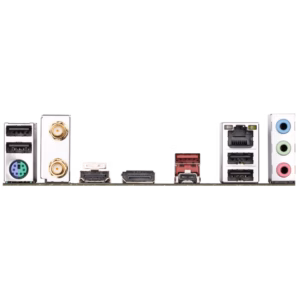

Back I/O Ports: 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio
Windows 11: Supported
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
MPN: B760 DS3H AC
UPC: 889523041185
