GIGABYTE B760M C LGA 1700 Intel B760 M-ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi 1GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Name: GIGABYTE B760M C LGA 1700 Intel B760 M-ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi 1GbE LAN, Q-Flash Plus, PCIe EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-453R
Price: 69.99 USD
Availability: InStock

★★★★★ No reviews yet

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors DDR5 Compatible: Dual Channel DDR5, 4 DIMMs

$69.99 ~~$139.99~~ Save $70

B760M C

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: 6+1+1 Hybrid Digital VRM Design
Thermal Design: Enlarged MOSFET Heatsink
Next Gen Connectivity: PCIe 5.0 exansion slot, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
Networking: 1GbE LAN, Realtek Wi-Fi AC

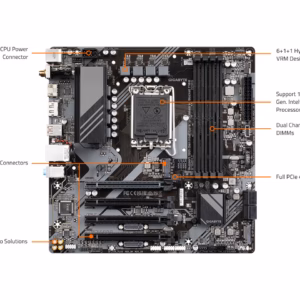

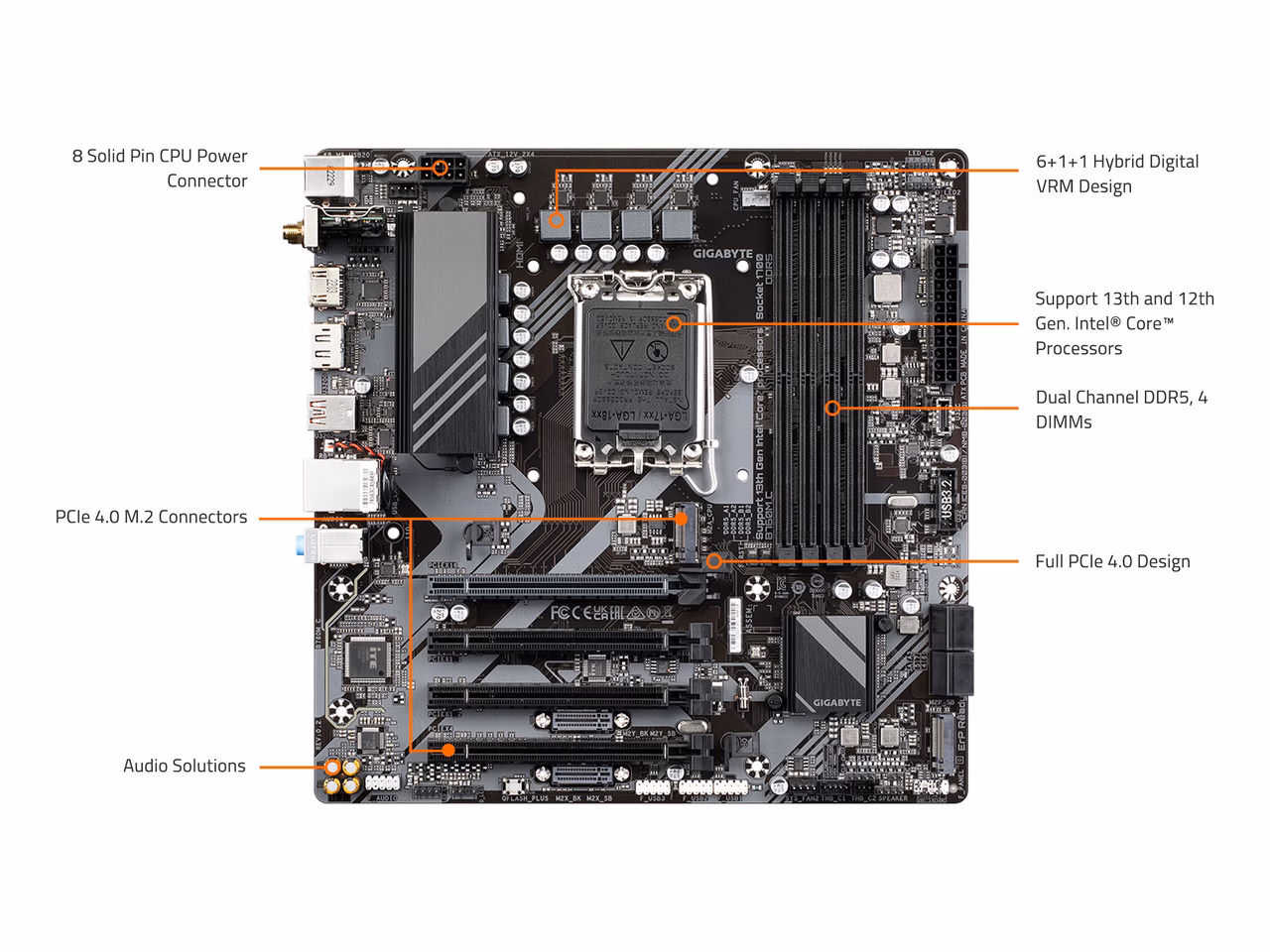

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1700
CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset: Intel B760
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000
Maximum Memory Supported: 192GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)(PCB rev. 1.0) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x4: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
PCI Express x1: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
SATA RAID: 0/1/5/10
Audio Channels: 7.1 Channels
Max LAN Speed: 1Gbps
Wireless LAN: Wi-Fi 802.11 ac
Bluetooth: Bluetooth 4.2

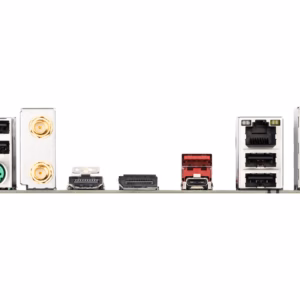

Back I/O Ports: 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x Thunderbolt add-in card connectors 1 x Q-Flash Pl
Windows 11: Supported
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
MPN: B760M C
UPC: 889523036594
