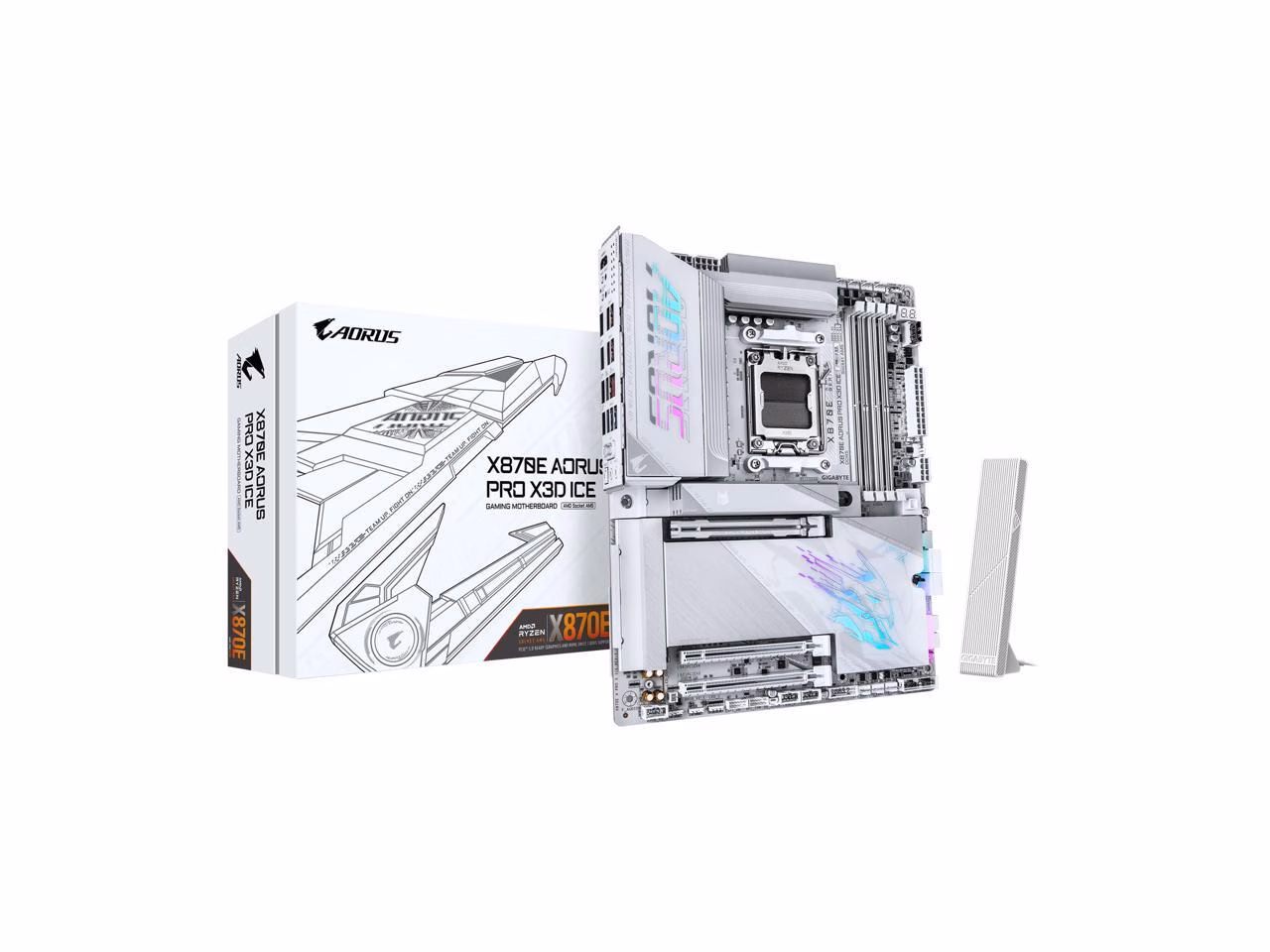

GIGABYTE X870E AORUS PRO X3D ICE AM5

Name: GIGABYTE X870E AORUS PRO X3D ICE AM5 - GRC | PC Components & Gaming Peripherals
SKU: 13-145-594R
Price: 255.61 USD
Availability: InStock

★★★★★ No reviews yet

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s

$255.61 ~~$449.99~~ Save $194.38

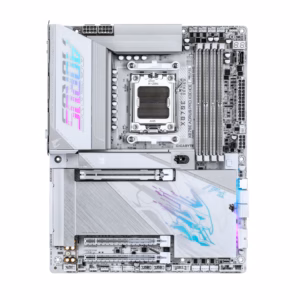

X870E AORUS PRO X3D ICE

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

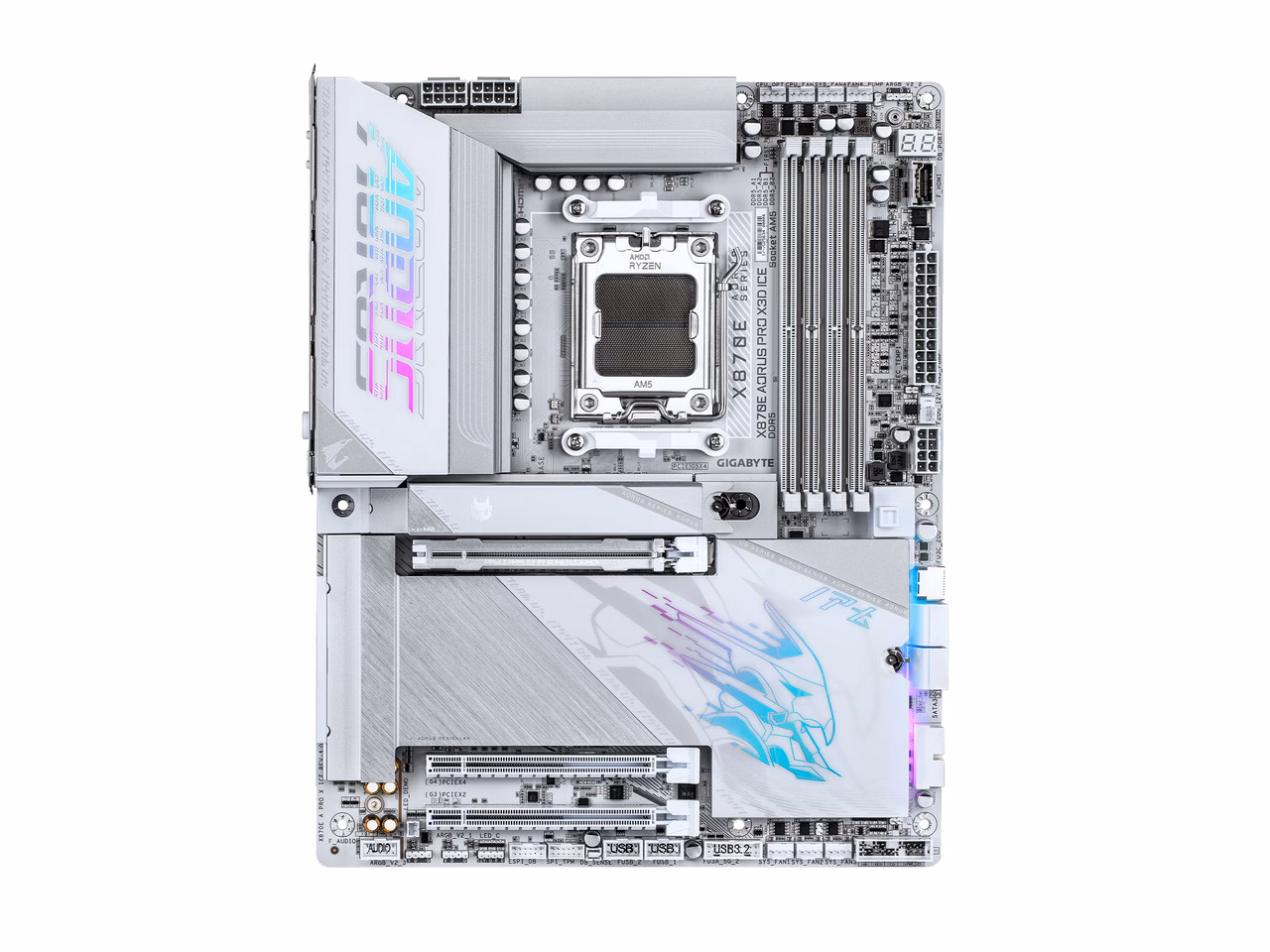

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: AM5
CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset: AMD X870E
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: Up to DDR5 9000(O.C)
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: AMD EXPO / Intel XMP 3.0
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
PCI Express 5.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot ca
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
Max LAN Speed: 5Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: Yes

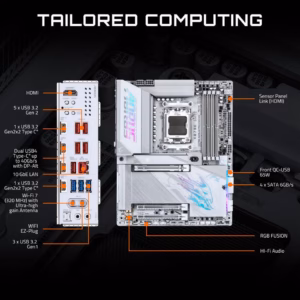

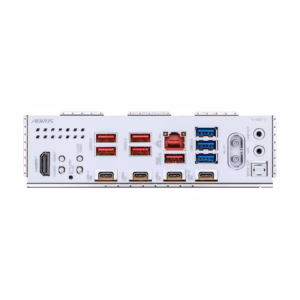

Back I/O Ports: 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C ports, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x ant
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors: 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front p
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
BIOS Feature: 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
MPN: X870E AORUS PRO X3D ICE
UPC: 889523053164
