GIGABYTE X870E AORUS ELITE WIFI7 ICE AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch

Name: GIGABYTE X870E AORUS ELITE WIFI7 ICE AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-579
Price: 330.00 USD
Availability: InStock
Rating: 3.50 (2 reviews)

★★★★★ 3.5 2 reviews

AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors DDR5 Compatible: 4*DIMMs with AMD EXPO Support

$330.00

X870E AORUS ELITE WIFI7 ICE

AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
DDR5 Compatible: 4*DIMMs with AMD EXPO Support
Power Design: 16+2+2
Thermals: VRM and M.2 Thermal Guard
Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone

Key features

X870E AORUS ELITE WIFI7 ICE

AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash

Performance

Thermal

Connectivity

DIY Friendly

AORUS AI SNATCHBullet Point

Unleash Ultimate Performance with One-Click Activation.

Auto DDR5 Memory Boost

With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:

Enhance DDR5 speeds with a single click.

EZ to Pro

Enhanced Computing Power Fast AI Performance EZ to Peak Safe OC Less Power Usage Enhanced Computing Power Fast AI Performance EZ to Peak Safe OC Less Power Usage

Zenith of the Memory

AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Specifications

Brand: GIGABYTE
CPU Socket Type: AM5
CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset: AMD X870E
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7800 / DDR5 8000 / DDR5 8200
Maximum Memory Supported: 256GB
Memory Performance Profile: AMD EXPO
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
Memory Feature: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
PCI Express 5.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at
PCI Express x4: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
M.2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix
Audio Chipset: Realtek ALC1220 CODEC
Audio Channels: 7.1 Channels
Max LAN Speed: 2.5Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: BLUETOOTH 5.4

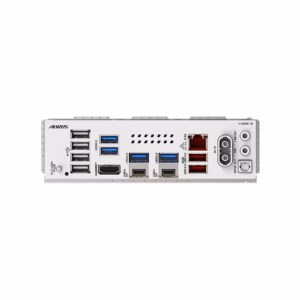

Back I/O Ports: 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pane
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
BIOS Feature: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11: Supported
Features: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
MPN: X870E AORUS ELITE WIFI7 ICE
UPC: 889523049617
