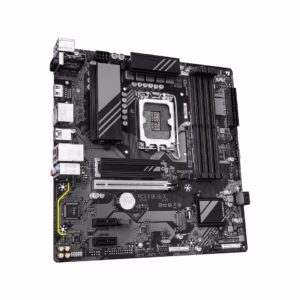

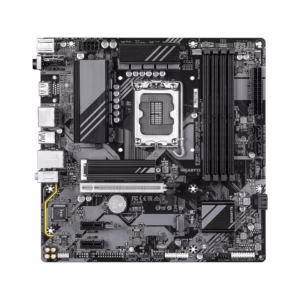

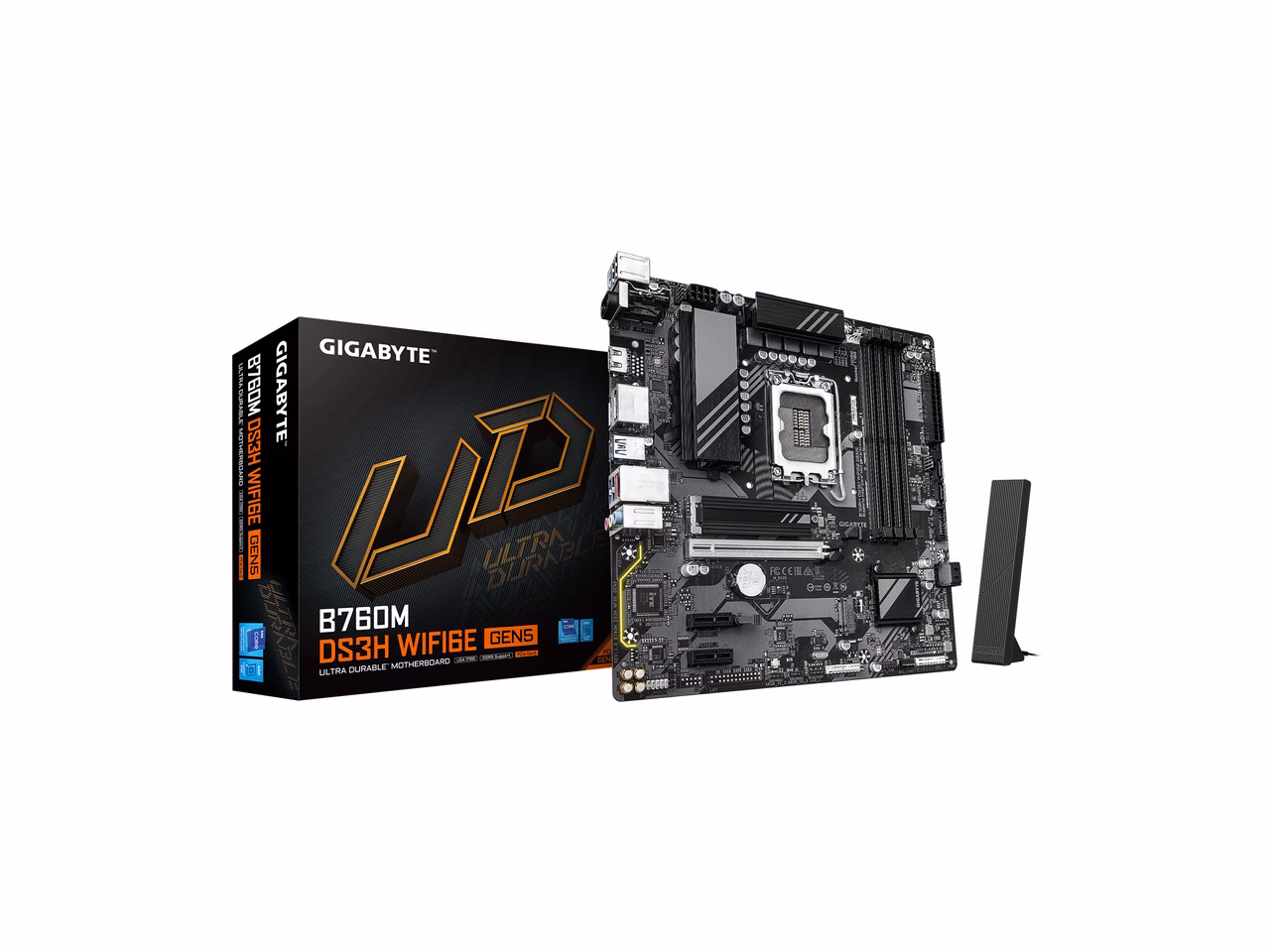

GIGABYTE B760M DS3H WIFI6E GEN5 LGA 1700
Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
$135.88
$150.99
Save $15.11
B760M DS3H WIFI6E GEN5
- Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
- Sturdy Power Design: Hybrid 6+2+1 Phases Hybrid Digital VRM Design
- Comprehensive Thermal Design: Advanced Thermal Design & M.2 Thermal Guard
- Next Gen Connectivity: PCIe 5.0, M.2, USB 3.2 Gen 2 Type-C
- Fast Networking: 2.5GbE LAN, Intel WiFi 6E
Orders are handed to the carrier within 1 business day.
Free Shipping (3–5 business days) · Priority Shipping $9.90 (1–2 business days).
You have 30 days from the day your order is delivered to return unused items in their original condition and packaging. We pay for return shipping: you receive a prepaid label and nothing is deducted from your refund.
Once we receive and inspect the return, the refund goes back to your original payment method within 3 business days. Banks and card issuers may take another 3–10 business days to post it.
Each product is covered by its brand manufacturer's warranty. The term, what is covered, and how to make a claim are set by that manufacturer.
Email [email protected]. We reply within one business day.
Support covers shipping, returns, and order tracking.

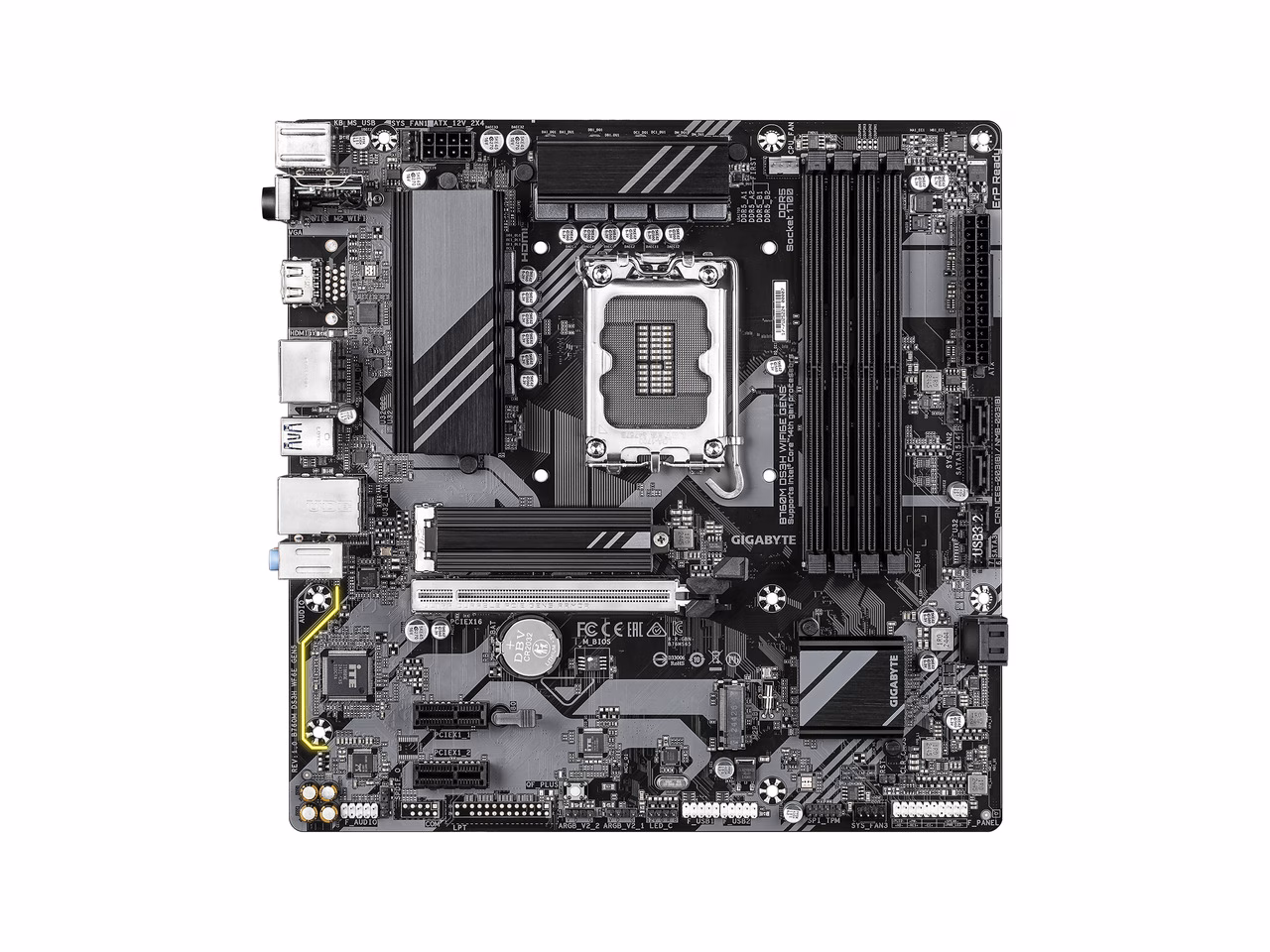

Key features
B760M DS3H WIFI6E GEN5
Performance
Thermal
Connectivity
DIY Friendly
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
PCIe UD Slot
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability. * Photo for reference only
1.7X
stronger shearing test
3.2X
stronger retention force test Reduced Signal Degradation with SMD Technology
Specifications
- Brand
- GIGABYTE
- CPU Socket Type
- LGA 1700
- CPU Type
- Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
- Chipset
- Intel B760
- Number of Memory Slots
- 4x288pin (DDR5)
- Memory Standard
- DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400
- Maximum Memory Supported
- 256GB
- Channel Supported
- Dual Channel
- Memory Performance Profile
- Intel XMP 3.0
- PCI Express 5.0 x16
- 1 x PCI Express 5.0 x16
- PCI Express x1
- 2 x PCI Express x1
- Serial ATA (SATA)
- 4 x SATA 6Gb/s
- M.2
- CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- SATA RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Audio Channels
- 7.1 Channels
- Max LAN Speed
- 2.5Gbps
- Wireless LAN
- Wi-Fi 802.11 ax
- Bluetooth
- BLUETOOTH 5.3

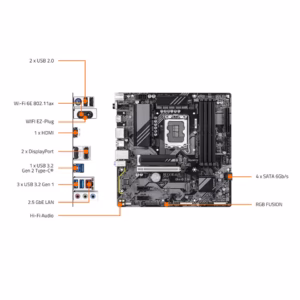

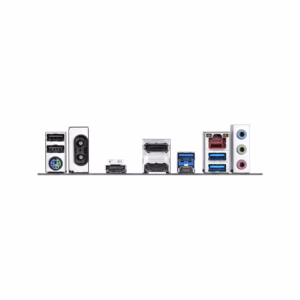

- Back I/O Ports
- 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
- Onboard USB
- 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
- Other Connectors
- 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM
- BIOS Feature
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form Factor
- Micro ATX
- Dimensions (W x L)
- 9.6" x 9.6"
- Power Pin
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
- MPN
- B760M DS3H WIFI6E GEN5
- UPC
- 889523050507
