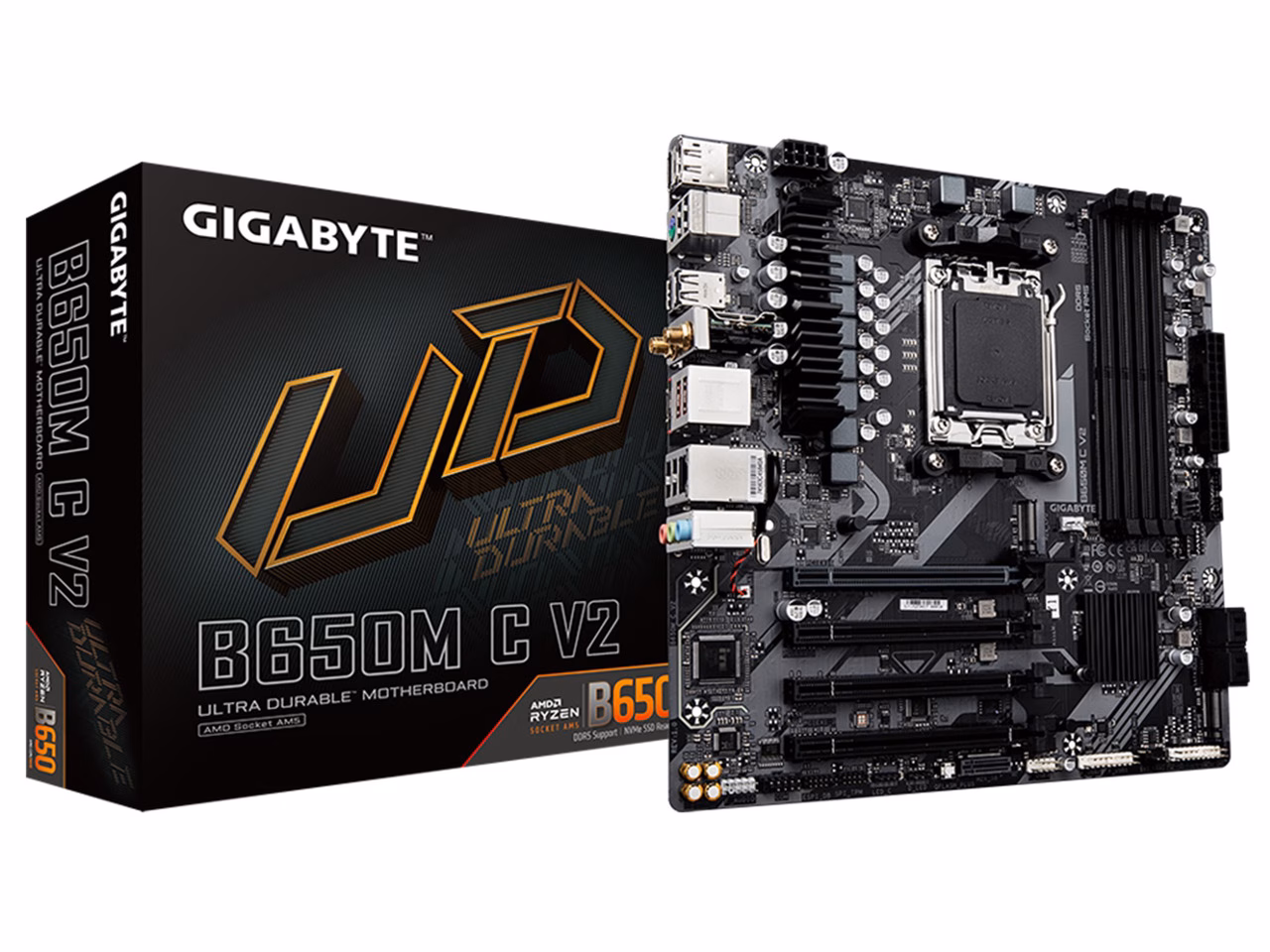

GIGABYTE B650M C V2 AM5 LGA 1718 AMD B650 M-ATX Motherboard with 5-Year Warranty, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN

Name: GIGABYTE B650M C V2 AM5 LGA 1718 AMD B650 M-ATX Motherboard with 5-Year Warranty, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN - GRC | PC Components & Gaming Peripherals
SKU: 13-145-474R
Price: 86.21 USD
Availability: InStock

★★★★★ No reviews yet

AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

$86.21 ~~$149.99~~ Save $63.78

B650M C V2

AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
Unparalleled Performance:5+2+2 Phases Digital VRM Solution
SuperSpeed Storage:3*PCIe 4.0 M.2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 2 Type-A
Fast Networking: 1GbE Realtek LAN, WIFI 802.11a, b, g, n, ac
Fine Tuning Features: Smart Fan 6, Q-Flash

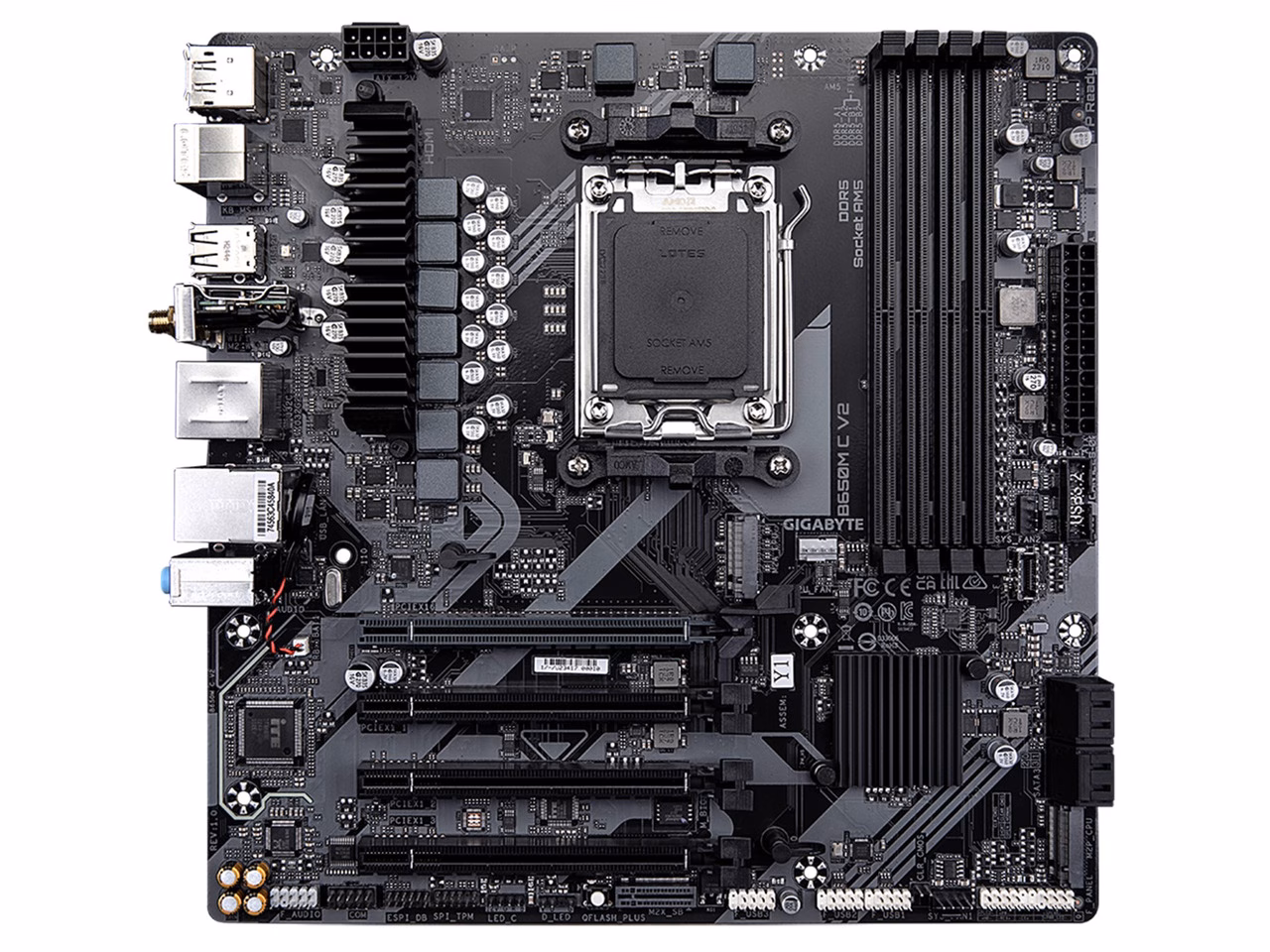

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: AM5
CPU Type: Ryzen 7000 Series
Chipset: AMD B650
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Maximum Memory Supported: 192GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0 / AMD EXPO
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
Memory Feature: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profil
PCI Express 4.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16: Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/25110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x2 SSD support) (M2P_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260 PCIe 3.0 x1 SSD support) (M2X_SB)
SATA RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Chipset: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels: 7.1 Channels
LAN Chipset: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Max LAN Speed: 1Gbps
Wireless LAN: AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard and up to 433 Mbps data rate (Actual data rate may vary depending on environment and equipment.)
Bluetooth: Yes

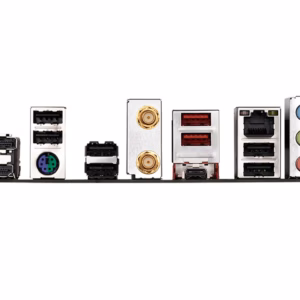

Back I/O Ports: 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Windows 11: Supported
Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
MPN: B650M C V2
UPC: 889523038956
