GIGABYTE X870 AORUS INFINITY AM5

Name: GIGABYTE X870 AORUS INFINITY AM5 - GRC | PC Components & Gaming Peripherals
SKU: 13-145-625
Price: 799.99 USD
Availability: InStock

★★★★★ No reviews yet

AMD X870 Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

$799.99

X870 AORUS INFINITY

AMD X870
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Up to DDR5 11400 (OC)

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: AM5
CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset: AMD X870
Number of Memory Slots: 2x288pin (DDR5)
Memory Standard: Up to DDR5 11400 (OC)
Maximum Memory Supported: 128GB
Channel Supported: Dual Channel
Memory Performance Profile: AMD EXPO / Intel XMP 3.0
ECC Supported: Non-ECC
PCI Express 5.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 sl
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Ph
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors.
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
Max LAN Speed: 5Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: BLUETOOTH 5.4

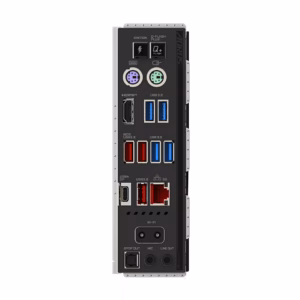

Back I/O Ports: 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front p
Form Factor: Extended ATX
Dimensions (W x L): 12.0" x 10.8"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
BIOS Feature: 2 x 512 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
MPN: X870 AORUS INFINITY
UPC: 889523059876
