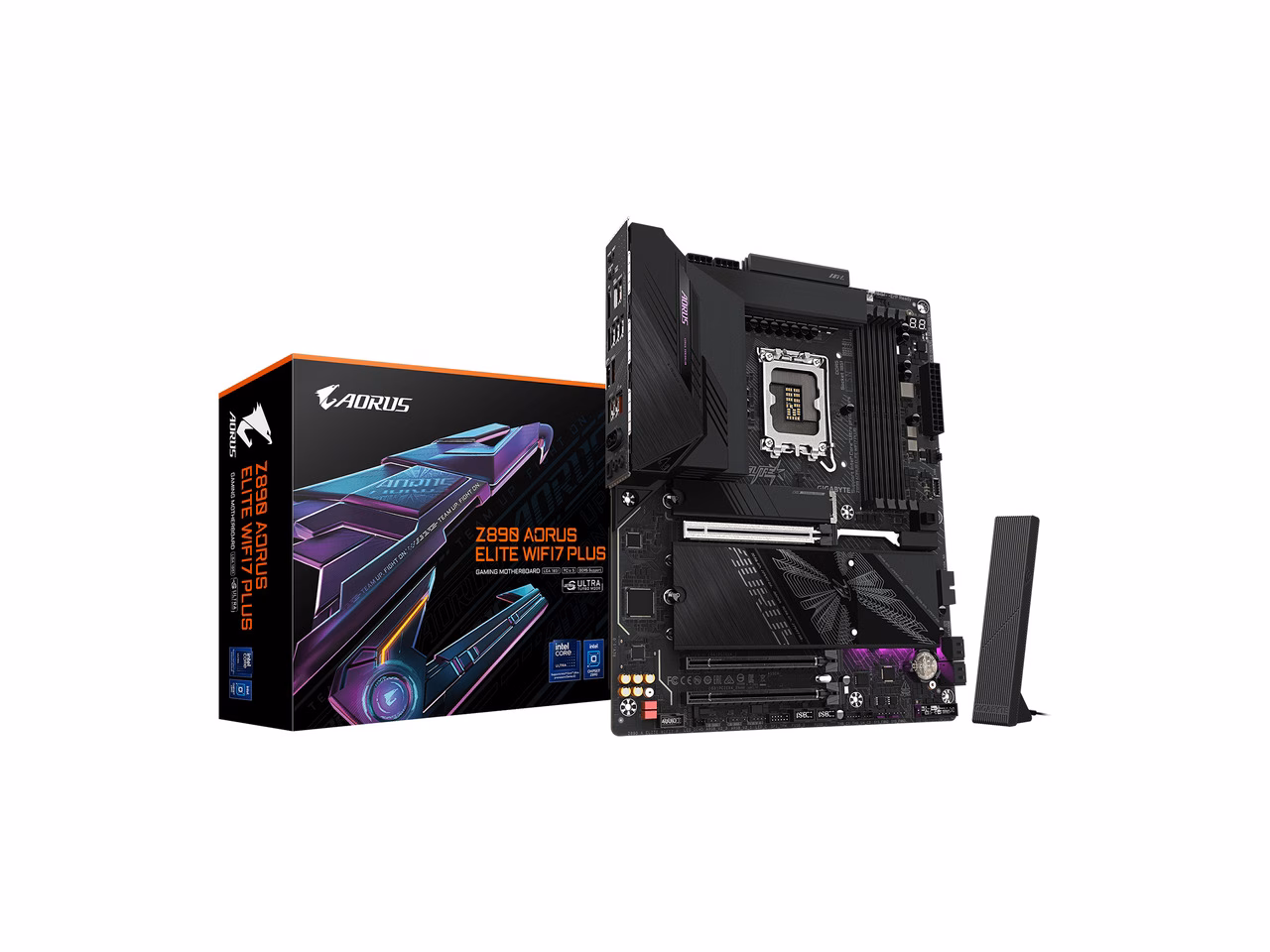

GIGABYTE Z890 AORUS ELITE WIFI7 PLUS Intel LGA 1851 ATX Motherboard, Support Core Ultra (Series 2), DDR5, 16+1+2 Power Phase, 4x M.2, PCIe 5.0, USB4, WiFi 7, 5GbE, EZ-Latch, D5 Bionic Corsa

Name: GIGABYTE Z890 AORUS ELITE WIFI7 PLUS Intel LGA 1851 ATX Motherboard, Support Core Ultra (Series 2), DDR5, 16+1+2 Power Phase, 4x M.2, PCIe 5.0, USB4, WiFi 7, 5GbE, EZ-Latch, D5 Bionic Corsa - GRC | PC Components & Gaming Peripherals
SKU: 13-145-615
Price: 259.99 USD
Availability: InStock

★★★★★ No reviews yet

Intel Socket LGA 1851: Ready to support Intel Core Ultra (Series 2) Processors. Enhanced Power Solution: 16+1+2 Digital VRM Design with premium chokes and capacitors for steady power delivery.

$259.99

Z890 AORUS ELITE WIFI7 PLUS

Intel Socket LGA 1851: Ready to support Intel Core Ultra (Series 2) Processors.
Enhanced Power Solution: 16+1+2 Digital VRM Design with premium chokes and capacitors for steady power delivery.
Advanced Thermal Armor: Advanced VRM heatsinks for better heat dissipation. Integrated I/O Shield for quicker PC DIY assembly.
Boost Your Memory: Compatible with DDR5 Memory and supports 4 DIMMs with Intel XMP Memory Module Support.

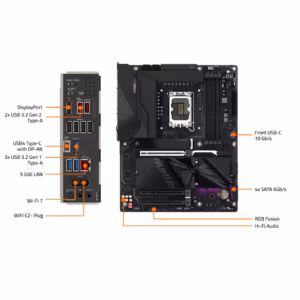

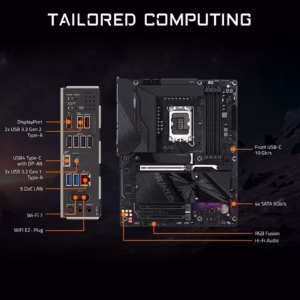

Comprehensive Connectivity: 1x PCIe 5.0 x16 slot with reinforced PCIe UD armor, 1x PCIe 5.0 M.2 slot, 3x PCIe 4.0 M.2 slots, 1x USB4 Type-C with DP-Alt, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, and Front USB-C 10Gb/s for hassle-free setup.
Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 5 GbE LAN, and Bluetooth 5.4.

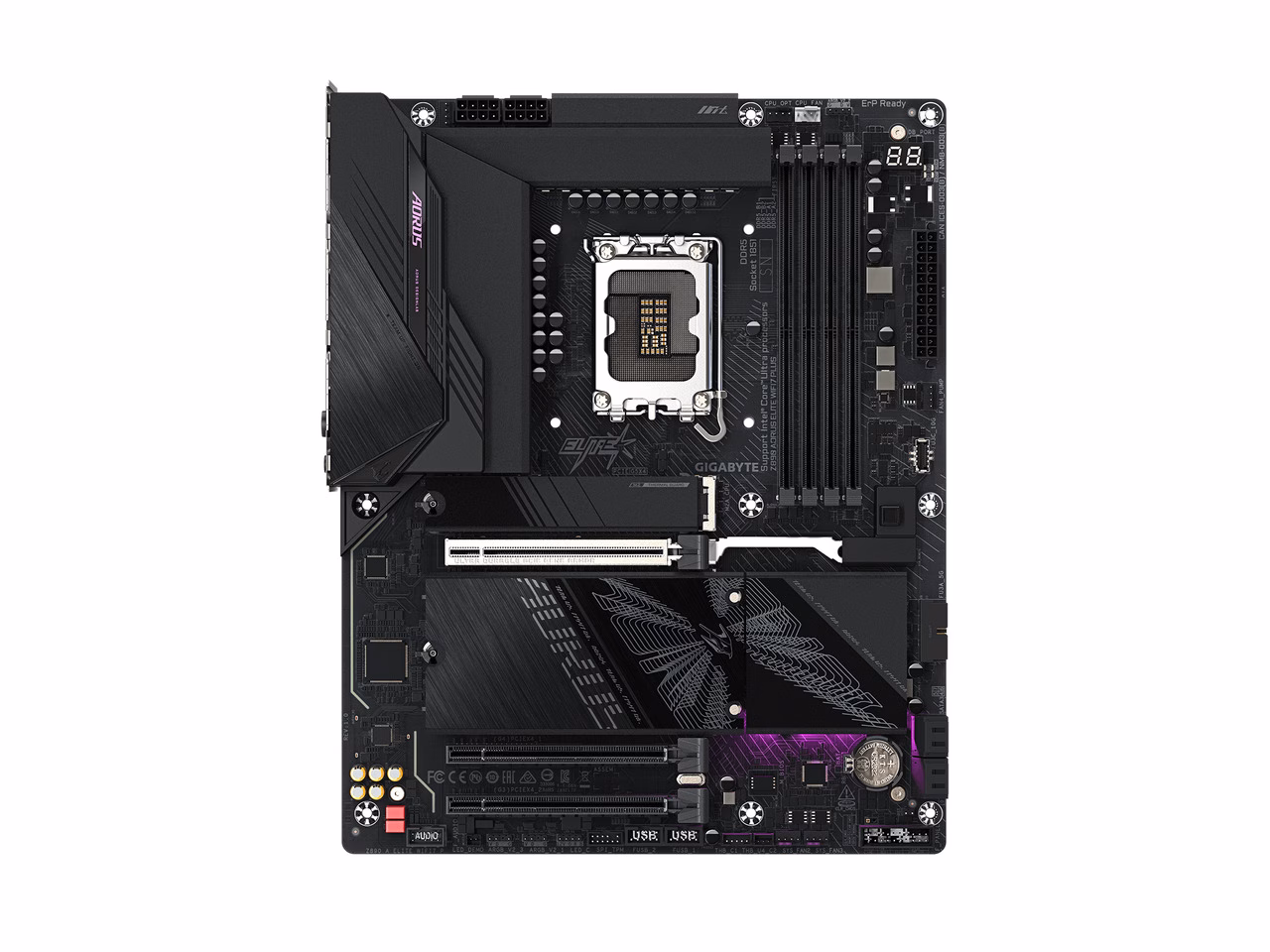

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (Series 2)
Chipset: Intel Z890
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: Support up to DDR5 9466+MT/s (OC)
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
Memory Feature: Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16: Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4(PCIEX4_1, PCIEX4_2)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SS
SATA RAID: 0/1/5/10
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
Max LAN Speed: 5Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: BLUETOOTH 5.4

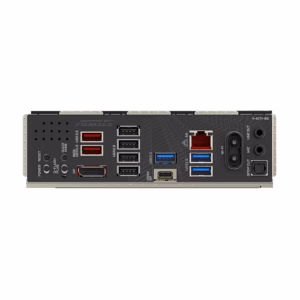

Back I/O Ports: 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pane
BIOS Feature: 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
MPN: Z890 AORUS ELITE WIFI7 PLUS
UPC: 889523058237
