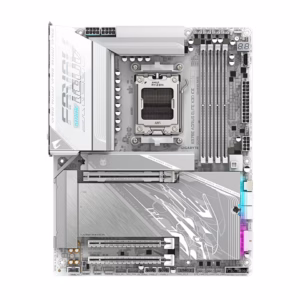

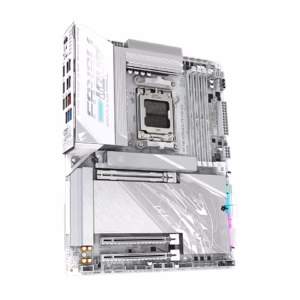

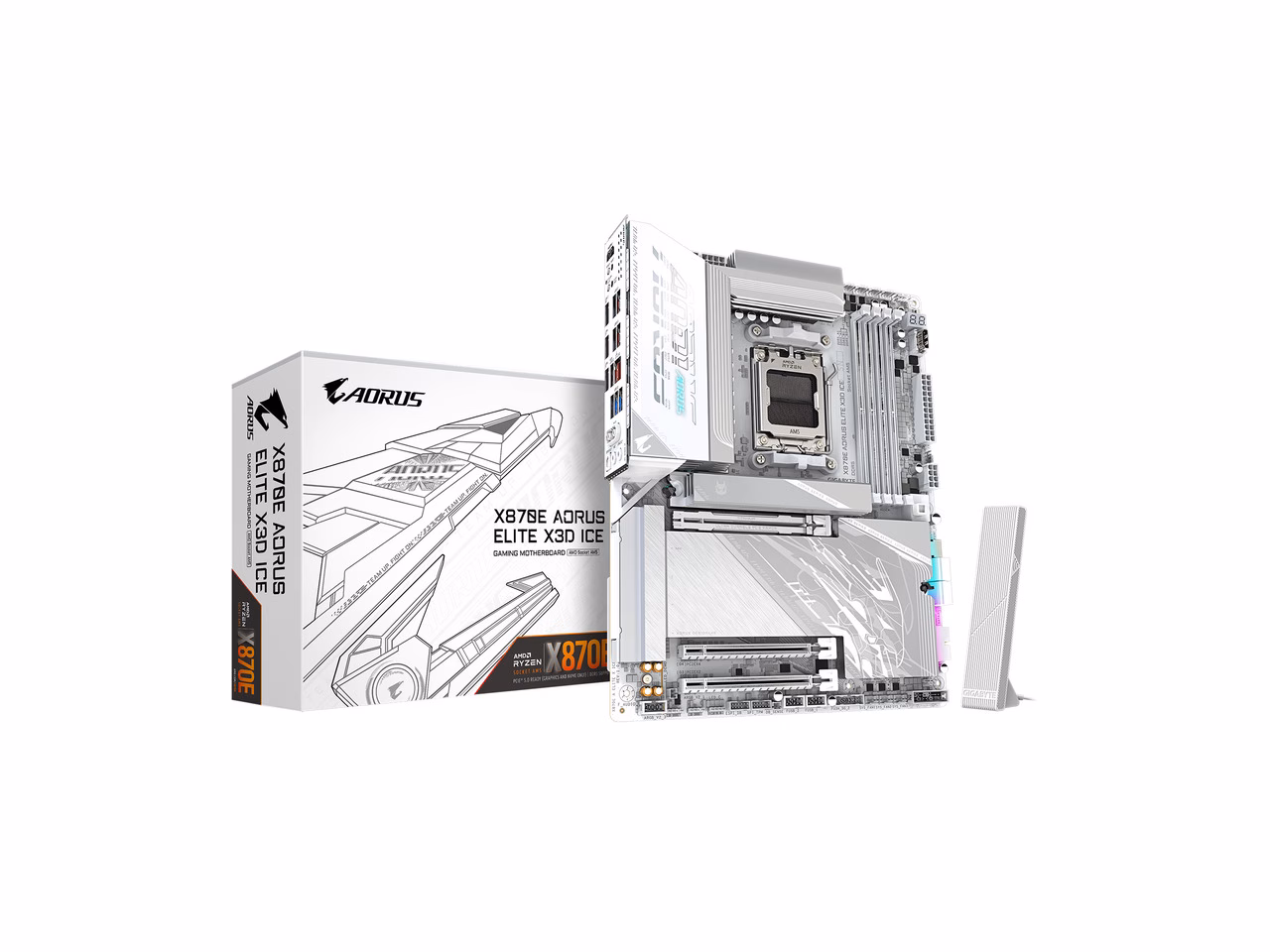

GIGABYTE X870E AORUS ELITE X3D ICE AM5

Name: GIGABYTE X870E AORUS ELITE X3D ICE AM5 - GRC | PC Components & Gaming Peripherals
SKU: 13-145-595
Price: 300.99 USD
Availability: InStock
Rating: 5.00 (2 reviews)

★★★★★ 5.0 2 reviews

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s

$300.99 ~~$389.99~~ Save $89

X870E AORUS ELITE X3D ICE

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support

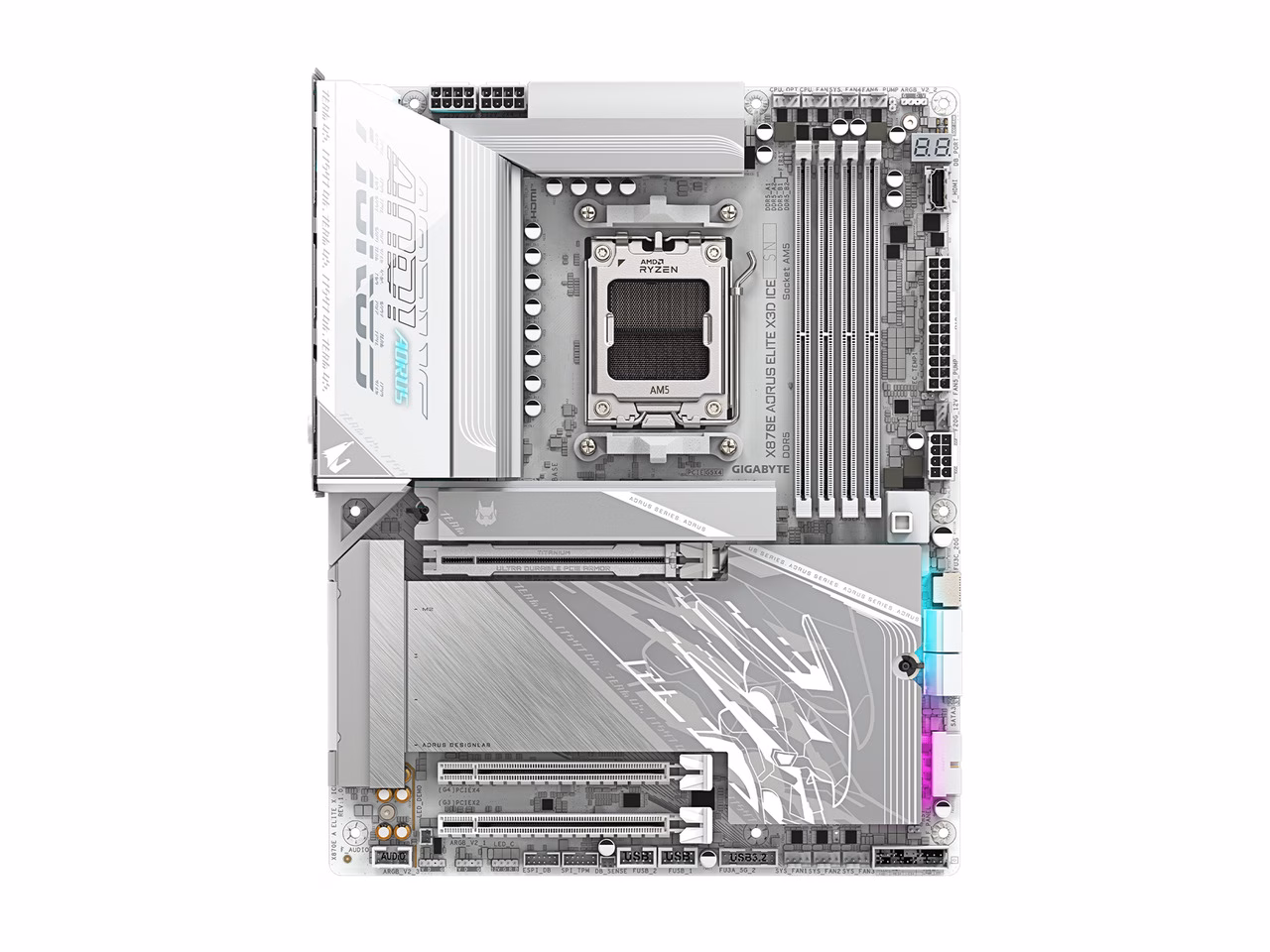

Key features

X870E AORUS ELITE X3D ICE

Performance Front

Performance Back

Thermal

Connectivity

DIY Friendly

X3D Turbo Mode 2.0

Incredible X3D performance unleashed by AI. X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.

One-Click Acceleration:

Faster, fiercer, more precise with a single click. Enhance Up to 25% * Differences in performance enhancement depending on the game.

AI Overclocking For peak performance

AORUS AI SNATCH

Unleash Ultimate Performance with One-Click Activation. * Coming soon

Specifications

Brand: GIGABYTE
CPU Socket Type: AM5
CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset: AMD X870E
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: Up to DDR5 9000(O.C)
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: AMD EXPO / Intel XMP 3.0
ECC Supported: Non-ECC
Buffer Supported: Un-buffered
PCI Express 5.0 x16: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot ca
M.2: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices
Audio Chipset: Realtek ALC1220
Audio Channels: 7.1 Channels
Max LAN Speed: 5Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: BLUETOOTH 5.4

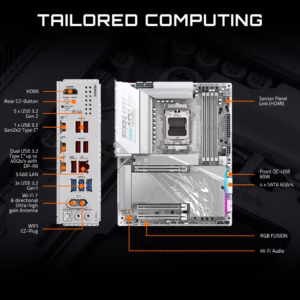

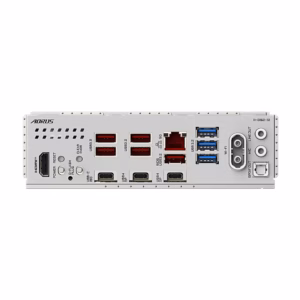

Back I/O Ports: 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x ante
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors: 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front p
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
BIOS Feature: 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
MPN: X870E AORUS ELITE X3D ICE
UPC: 889523053201

Customer reviews

Based on 2 reviews

Write a review

5.0 ★★★★★

5 star 100% (2)
4 star 0% (0)
3 star 0% (0)
2 star 0% (0)
1 star 0% (0)

David C. March 10, 2026
★★★★★
GIGABYTE X870E AORUS ELITE X3D ICE AM5

Excellent motherboard,

Diffently a step up with GIGABYTE motherboards

Pros: Beautiful looking, didn't even turn on x3d and when testing with 9850x3d cpu had excellent results.

Cons: None so far
Corey Young March 1, 2026
★★★★★
GIGABYTE X870E AORUS ELITE X3D ICE AM5

A Premium AM5 Motherboard

I would recommend this motherboard to builders, new or old. I can't really think of anything I would change.

Pros: I haven't built a PC since 2017 so this one is a huge upgrade from that era. It's also my first Gigabyte/Aorus product and have had no issues getting it up and running with a 9800x3d and 64gb Corsair RAM with expo enabled. I haven't really tinkered with it nor needed to. Stable, cool, and quiet in all stress-testing and gaming. -Tons of connectivity -Fan headers all over -Solid, well-built, and has massive heatsinks -Classy and subtle RGB -Great looking board for a white/cold looking build, though my air cooler blocks half the view

Cons: -Persistent 08 debug code but I still need to update BIOS -No interest in any AI aspects of this motherboard or any product really as it's destroying this hobby
