GIGABYTE B860M AORUS ELITE WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch

Name: GIGABYTE B860M AORUS ELITE WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-558
Price: 189.99 USD
Availability: InStock
Rating: 5.00 (1 reviews)

★★★★★ 5.0 1 review

Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 4*DIMMs

$189.99

B860M A ELITE WIFI6E

Supports Intel Core Ultra Processors (Series 2)
DDR5 Compatible: 4*DIMMs
Power Design: 12+1+2+1, 60A DrMOS VRM
Thermals: MOSFET Heatsink, M.2 Thermal Guard
Connectivity: PCIe 5.0, 3x M.2 Slots, USB-C
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug

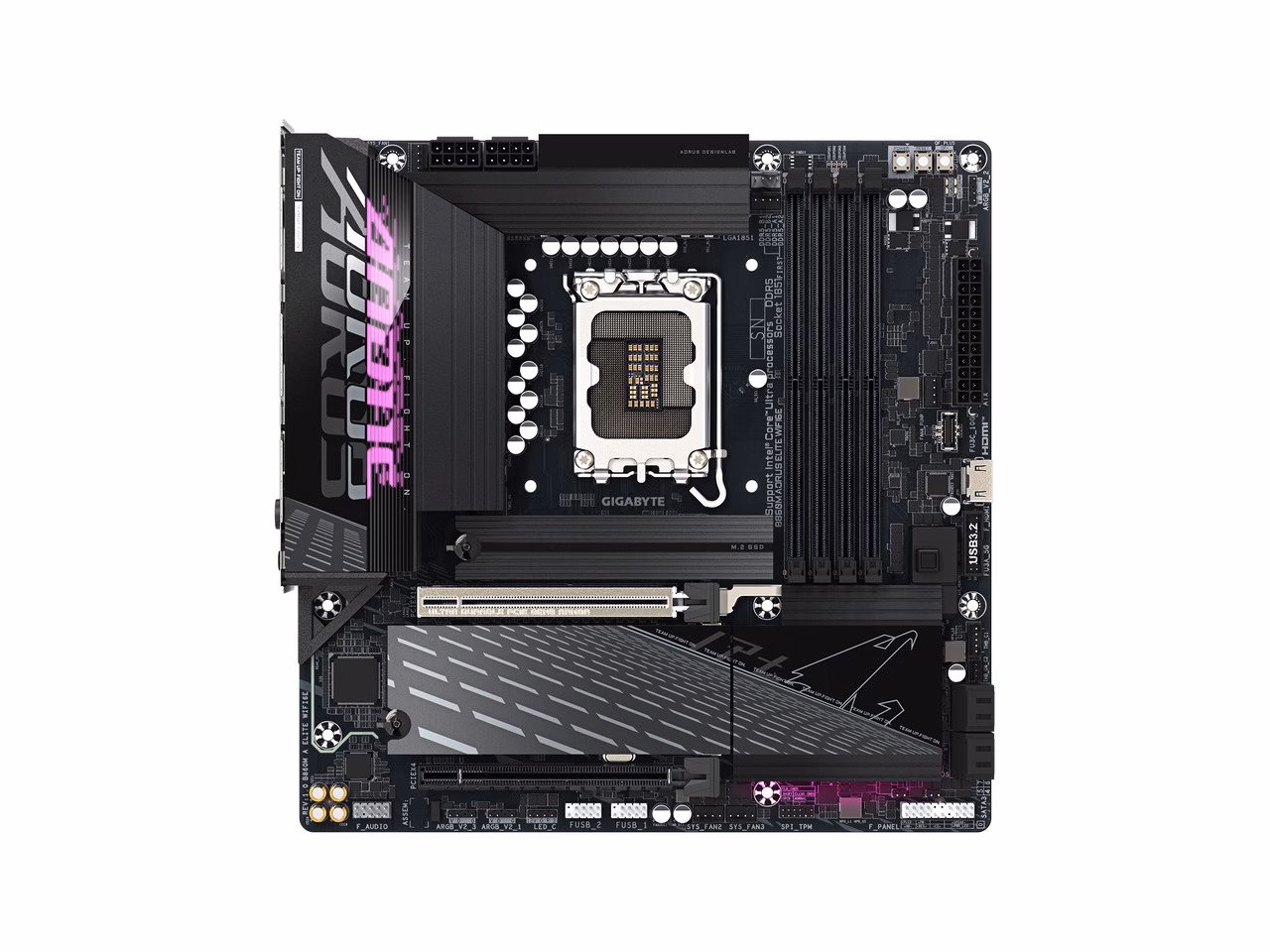

Key features

B860M AORUS ELITE WIFI6E

Performance

Thermal

Connectivity

DIY Friendly

Infinite Memory Performance

Elite motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

AI Overclocking For peak performance

AORUS AI SNATCH

Auto-Overclocking Software by AI model * Coming soon

AI SNATCH Engine

Advanced AI Overclocking Model

AI Design For MB signal enhancement

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (Series 2)
Chipset: Intel B860
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9200
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16: Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support)
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels: 7.1 Channels
Max LAN Speed: 2.5Gbps
Wireless LAN: Wi-Fi 802.11 ax
Bluetooth: Bluetooth 5.3

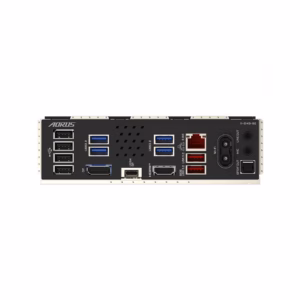

Back I/O Ports: 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x USB4 USB Type-C port (DisplayPort) 1 x HDMI port 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pane
BIOS Feature: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
MPN: B860M A ELITE WIFI6E
UPC: 889523046609

Customer reviews

Based on 1 review

Write a review

5.0 ★★★★★

5 star 100% (1)
4 star 0% (0)
3 star 0% (0)
2 star 0% (0)
1 star 0% (0)

Narcinard December 3, 2025
★★★★★
GIGABYTE B860M AORUS ELITE WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch

860 Chipset Mtherboard

I am firstly and for mostly a HUGE Gigabyte fan now since I have helped 3 friends fix their PCs and upgrade to 11. The BIOS update process does not involve finding a ISB drive formatting and running an installer in BIOS, nor do you have to find the download center and search for updates to then advance search to find more. Nope installing a Current BIOS is simple as finding the Gugabyte app center installing it in windows open and it tellers you what needs to be updated! Easy as that. I do like this chipset have it pared with a low end Microsoft provessor. Works great! No issues or hickups. You must run DDR5 memory and that is non negotiable. Yeah it is a bit small but apparently all B series are so if you are stuck with budget constraints this is still an 860 that zooms along. No overheating that I know of and the heat sink all appear to be working. 10/10 would recommend

Pros: Easy to install. Not a large Motherboard compared to a z series. gigabyte is easy and straight forward to update BIOS extremely easy

Cons: Not a big motherboard. Fewer slots for upgrade in the future for M.2 or PCIE
