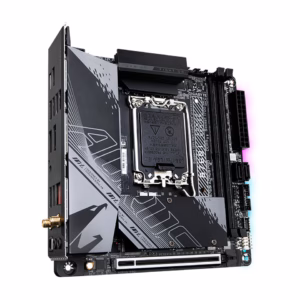

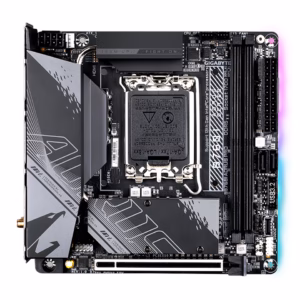

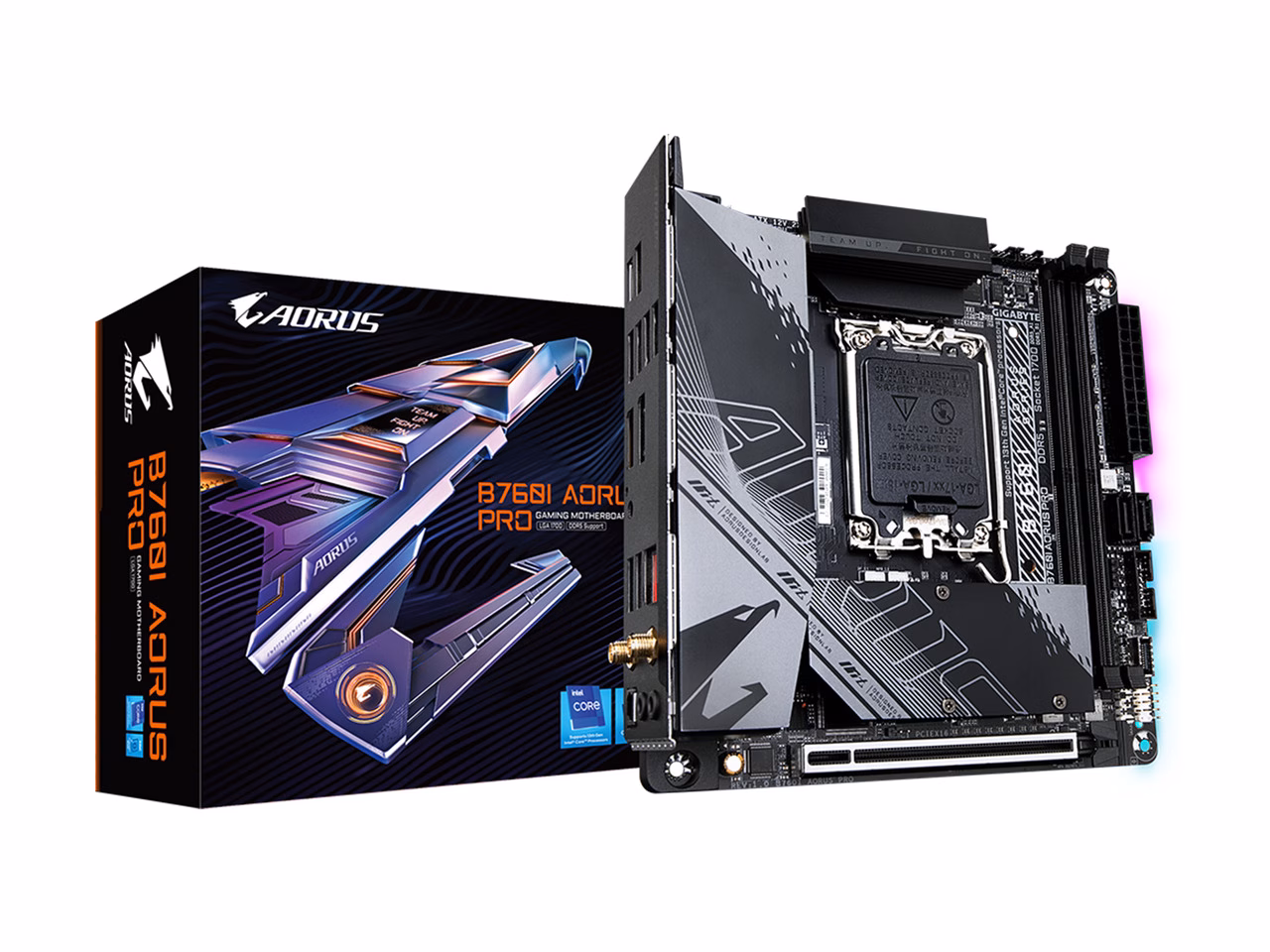

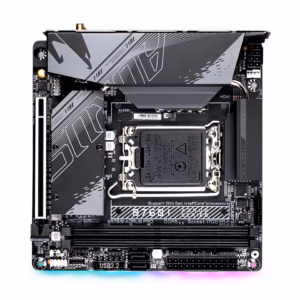

GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
$219.99
B760I AORUS PRO
- Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors
- Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 2*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
Orders are handed to the carrier within 1 business day.
Free Shipping (3–5 business days) · Priority Shipping $9.90 (1–2 business days).
You have 30 days from the day your order is delivered to return unused items in their original condition and packaging. We pay for return shipping: you receive a prepaid label and nothing is deducted from your refund.
Once we receive and inspect the return, the refund goes back to your original payment method within 3 business days. Banks and card issuers may take another 3–10 business days to post it.
Each product is covered by its brand manufacturer's warranty. The term, what is covered, and how to make a claim are set by that manufacturer.
Email [email protected]. We reply within one business day.
Support covers shipping, returns, and order tracking.

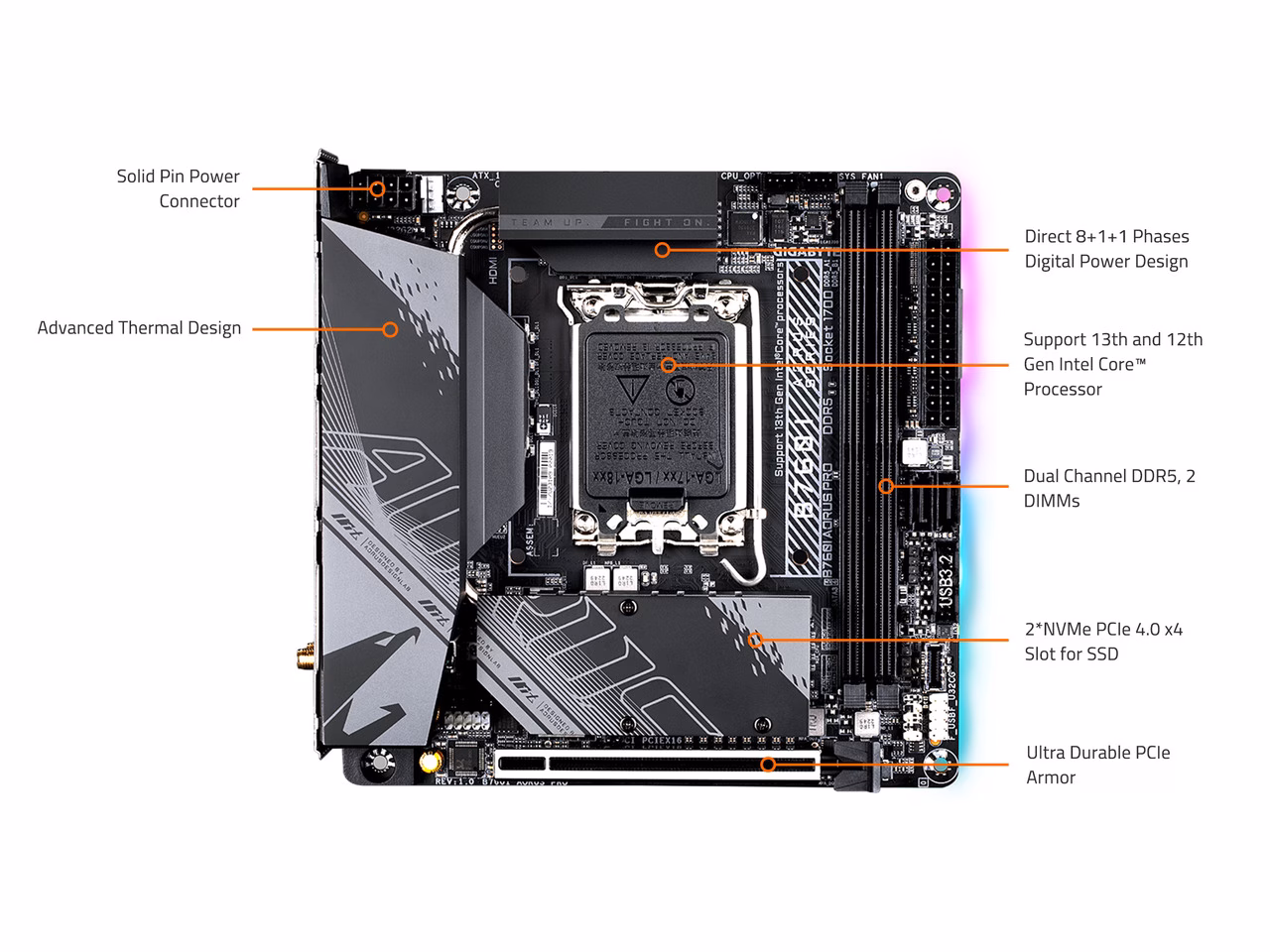

Key features
Specifications
- Brand
- GIGABYTE
- CPU Socket Type
- LGA 1700
- CPU Type
- Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information.
- Chipset
- Intel B760
- Number of Memory Slots
- 2x288pin (DDR5)
- Memory Standard
- Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
- Maximum Memory Supported
- 96GB
- Channel Supported
- Dual Channel
- Memory Performance Profile
- Intel XMP 3.0
- Memory Feature
- 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Supp
- PCI Express 4.0 x16
- CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- Serial ATA (SATA)
- 2 x SATA 6Gb/s
- M.2
- CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- SATA RAID
- RAID 0 and RAID 1 support for SATA storage devices
- Audio Chipset
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
- Audio Channels
- 7.1 Channels
- LAN Chipset
- Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Max LAN Speed
- 2.5Gbps
- Wireless LAN
- Wi-Fi 802.11 ax
- Bluetooth
- BLUETOOTH 5.3

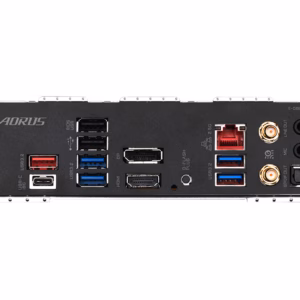

- Back I/O Ports
- 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jack
- Onboard USB
- 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
- Other Connectors
- 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x reset jumper 1
- Windows 11
- Supported
- Form Factor
- Mini ITX
- Dimensions (W x L)
- 6.7" x 6.7"
- Power Pin
- 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
- Features
- Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
- MPN
- B760I AORUS PRO
- UPC
- 889523037317
Customer reviews
Based on 5 reviews
3.4
★★★★★
-
Carey W.★★★★★
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Works ok.
OK.
-
Terrag★★★★★
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Beware B760I Boards
The first board I was sent had a bad first ram slot which apparently is common on B760 boards. The second board I received has no issue so far and both ram slots are working.
-
Joseph R.★★★★★
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Defective Board
I normally would purchase this brand. Have many other Gigabyte boards and products that all work great! This one was just a bad unit.
Pros: Normally a good brand to purchase.
Cons: The Motherboard had a defective RAM slot. could not to get unit to boot with the defective slot filled. Had to return the product.
-
Mr. H★★★★★
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Works great
Has been working flawlessly since being setup and never shut down, no downtime.
-
Anonymous★★★★★
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Not sure what to think.
I just ordered it about a few days ago and got delayed once but I got it the day after it was originolly supposed to be delivered. It did not come in a sealed box but I do not know if that is a normal thing or not. It did though, come in a sealed anti-static bag. Overall a great itx motherboard for the price.
