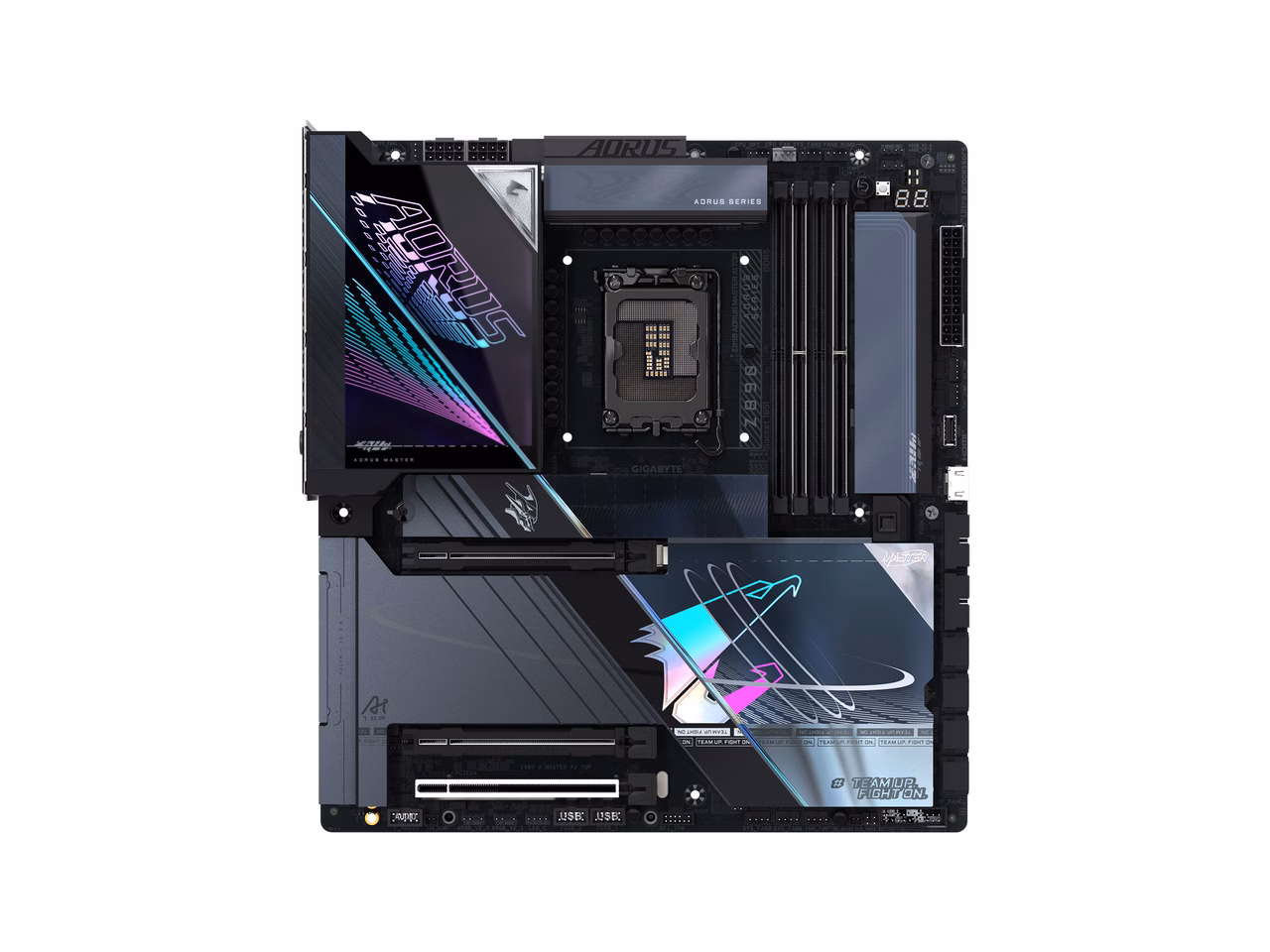

GIGABYTE Z890 AORUS MASTER AI TOP LGA 1851

Name: GIGABYTE Z890 AORUS MASTER AI TOP LGA 1851 - GRC | PC Components & Gaming Peripherals
SKU: 13-145-542
Price: 474.99 USD
Availability: InStock
Rating: 4.00 (3 reviews)

★★★★★ 4.0 3 reviews

Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 4*DIMMs with XMP Memory Module Support

$474.99 ~~$749.99~~ Save $275

Z890 AORUS MASTER AI TOP

Supports Intel Core Ultra Processors (Series 2)
DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
Power Design: 20+1+2, 110A Smart Power Stage
Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard
Connectivity: PCIe 5.0, 4x M.2 Slots, Dual Thunderbolt 4, Front USB-C
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (Series 2)
Chipset: Intel Z890 Express
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200 / DDR5
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Supp
PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with t
PCI Express 4.0 x16: Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SS
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Chipset: ESS ES9280 chip (rear panel audio) - Support for DTS:X Ultra - High Definition Audio - 2-channel ESS ES9118 DAC chip (front panel audio)
LAN Chipset: 2 x Marvell AQtion AQC113C 10GbE LAN chips
Max LAN Speed: 2 x 10Gbps
Wireless LAN: Wi-Fi 802.11 be
Bluetooth: BLUETOOTH 5.4

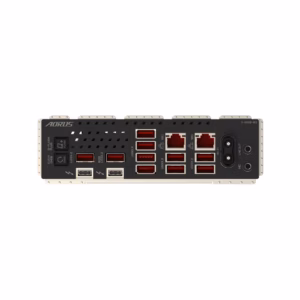

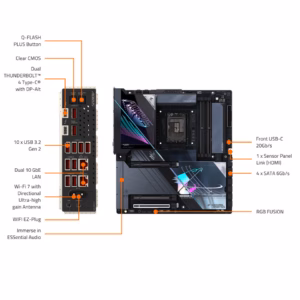

Back I/O Ports: 1 x Q-Flash Plus button 1 x OC Ignition button 2 x Intel Thunderbolt 5 connectors (USB Type-C ports) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pan
BIOS Feature: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11: Windows 11 64-bit
Form Factor: Extended ATX
Dimensions (W x L): 12.0" x 11.2"
Power Pin: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Features: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
MPN: Z890 AORUS MASTER AI TOP
UPC: 889523045831

Customer reviews

Based on 3 reviews

Write a review

4.0 ★★★★★

5 star 67% (2)
4 star 0% (0)
3 star 0% (0)
2 star 33% (1)
1 star 0% (0)

Chris F. December 27, 2025
★★★★★
GIGABYTE Z890 AORUS MASTER AI TOP LGA 1851

Built like a brick, EASY install. Best MB I've owned

All nvme slots have their own heatsinks. Definitely better than what you'll get with a nvme with a heatsink included. In the picture, you'll see my 9100 with it's oem heatsink. not as pretty or HUGE like the aorus.

Pros: Build solid, heavy, durable. Great location for connectors (at least for my artic c8) Everything went together easy. No issues with clips, mechanisms, etc. Looks beautiful. Updated bios before power on, this is a great board, with great features. Very easy to navigate bios, everything worked exactly as it should.

Cons: 0 so far.
Anonymous December 15, 2025
★★★★★
GIGABYTE Z890 AORUS MASTER AI TOP LGA 1851

Odd quirks

I got a pretty good deal on this board, and Im still not sure I would buy it again.

Pros: On the initial build this board seemed really nice, and runs well after its setup

Cons: There are odd quirks like the HDMI port is not on the motherboard back panel like every other board. Its on the right side of the board, almost nondescript. Being on the right side of the board, its really impossible to use the port without removing the case side panel. The BIOS software is terrible, and didnt recognize my gou until I updated it. **update*** A week after using the board, one of the two ethernet ports have died. Not sure I would chase them down for warranty, because all my software is installed and would be a pain to ship back and forth.
Anonymous October 10, 2025
★★★★★
GIGABYTE Z890 AORUS MASTER AI TOP LGA 1851

Very good

Very good
