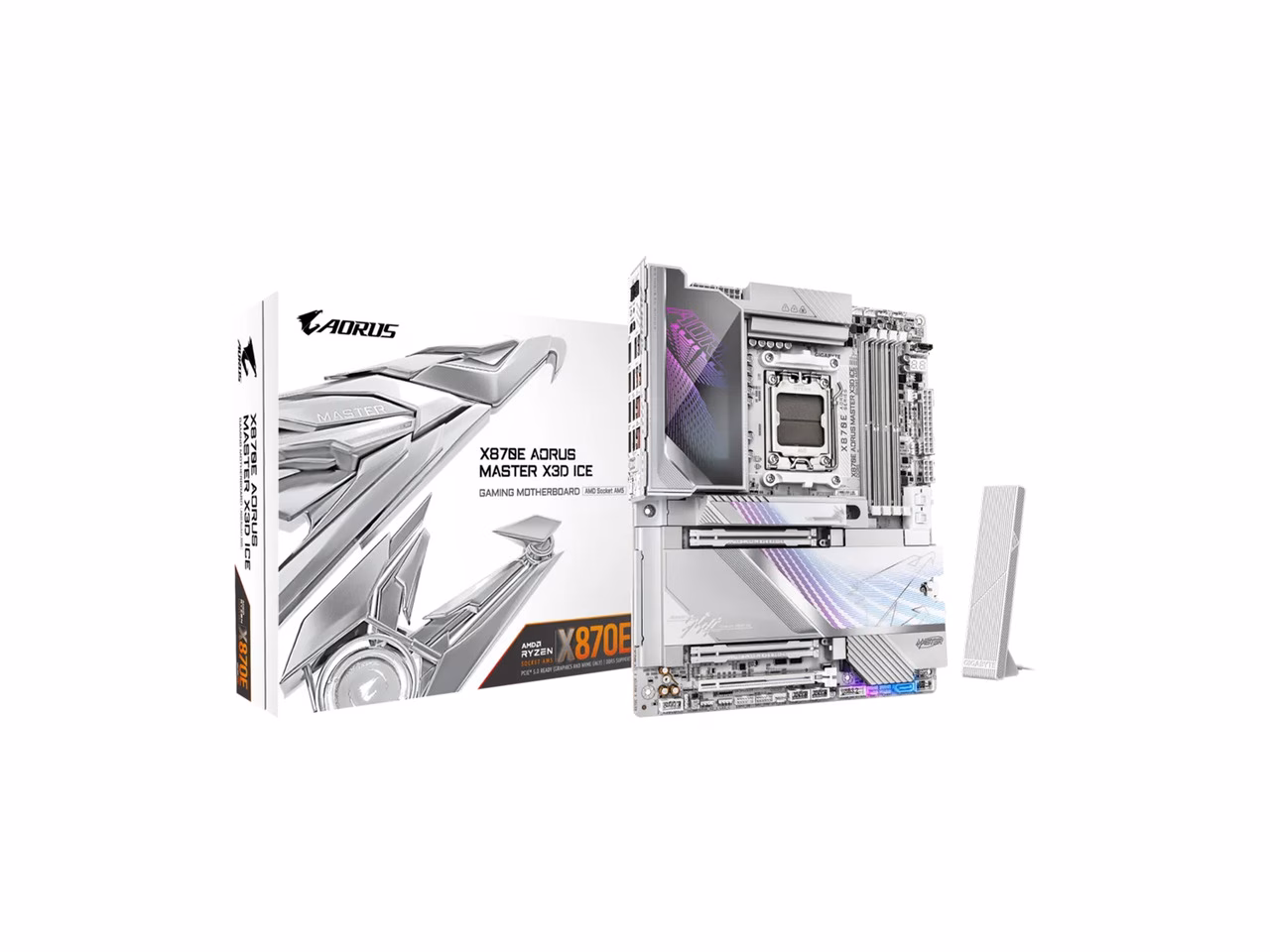

GIGABYTE X870E AORUS MASTER X3D ICE AM5
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s
$489.99
$599.99
Save $110

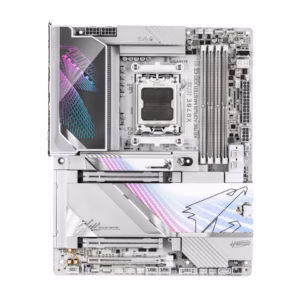

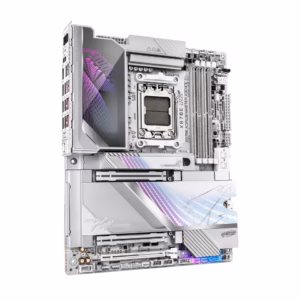

X870E AORUS MASTER X3D ICE
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
Orders are handed to the carrier within 1 business day.
Free Shipping (3–5 business days) · Priority Shipping $9.90 (1–2 business days).
You have 30 days from the day your order is delivered to return unused items in their original condition and packaging. We pay for return shipping: you receive a prepaid label and nothing is deducted from your refund.
Once we receive and inspect the return, the refund goes back to your original payment method within 3 business days. Banks and card issuers may take another 3–10 business days to post it.
Each product is covered by its brand manufacturer's warranty. The term, what is covered, and how to make a claim are set by that manufacturer.
Email [email protected]. We reply within one business day.
Support covers shipping, returns, and order tracking.
Key features
X870E AORUS MASTER X3D ICE
Performance Front
Performance Back
Thermal
Connectivity

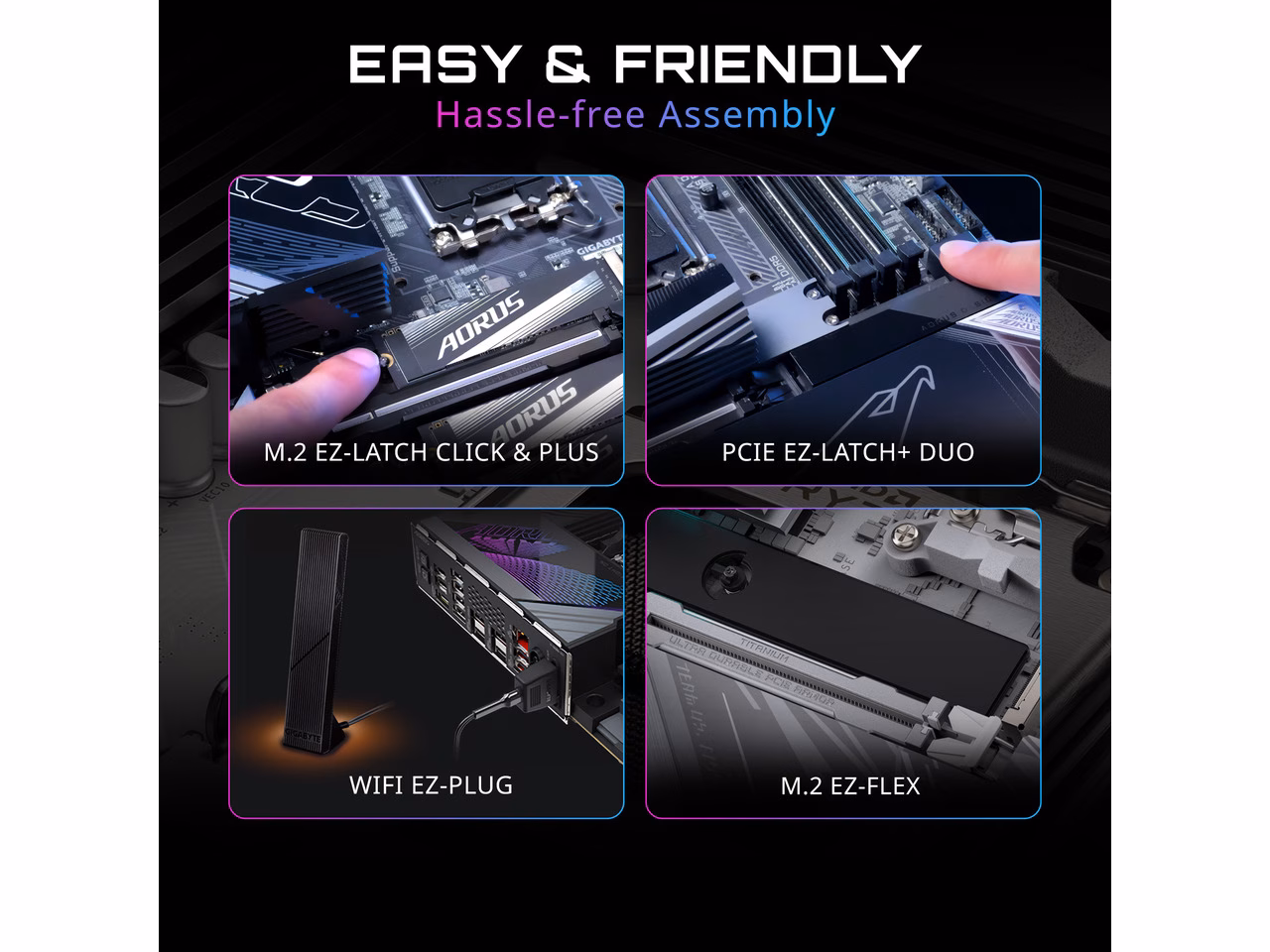

DIY Friendly
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI. X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
One-Click Acceleration:
Faster, fiercer, more precise with a single click. Enhance Up to 25% * Differences in performance enhancement depending on the game.
AI Overclocking For peak performance
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation.
Specifications
- Brand
- GIGABYTE
- CPU Socket Type
- AM5
- CPU Type
- Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- Chipset
- AMD X870E
- Number of Memory Slots
- 4x288pin (DDR5)
- Memory Standard
- Up to DDR5 9000(O.C)
- Maximum Memory Supported
- 256GB
- Channel Supported
- Dual Channel
- Memory Performance Profile
- AMD EXPO / Intel XMP 3.0
- ECC Supported
- Non-ECC
- Buffer Supported
- Un-buffered
- PCI Express 5.0 x16
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 sl
- M.2
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors
- SATA RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices
- Audio Chipset
- Realtek ALC1220
- Audio Channels
- 7.1 Channels
- Max LAN Speed
- 10Gbps + 5Gbps
- Wireless LAN
- Wi-Fi 802.11 be
- Bluetooth
- BLUETOOTH 5.4

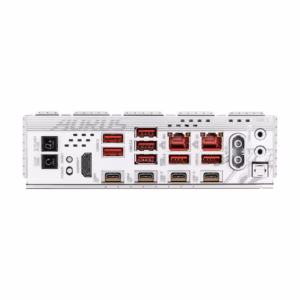

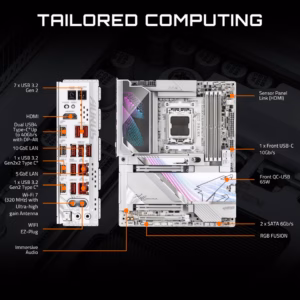

- Back I/O Ports
- 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset button 1 x power button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (r
- Onboard USB
- 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
- Other Connectors
- 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump header 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip head
- Form Factor
- ATX
- Dimensions (W x L)
- 12.0" x 9.6"
- Power Pin
- 1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors
- BIOS Feature
- 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- MPN
- X870E AORUS MASTER X3D ICE
- UPC
- 889523053089
Customer reviews
Based on 3 reviews
4.7
★★★★★
-
Anonymous★★★★★
GIGABYTE X870E AORUS MASTER X3D ICE AM5
Great service as always
I had to RMA a different board (cheap, poor quality, and terrible customer service) and replace it with this board recommended by AMD. After receiving 1 damaged board and 1 incorrect board from another company, I ordered from Newegg like I should have in the first place. It was delivered on time, and in perfect condition. After installation, I have a working pc again.
-
Anonymous★★★★★
GIGABYTE X870E AORUS MASTER X3D ICE AM5
Decent motherboard
This motherboard is nice I had to send one back due to bios issues but got a replacement. It seems to be a nice board so far. The only problem is that for the price you would think there would be more fan ad argb headers attached without having to buy a hub for large cases. I am using a 9950x3d and a 5090 all water cooled. So far no issues on the current board.
Cons: Not enough fan and argb headers for the price
-
I'm Me★★★★★
GIGABYTE X870E AORUS MASTER X3D ICE AM5
In love
I would hands down tell me to buy this as my cons are probably self assured more than a public common issue.
Pros: Workability, Usability, esthetics, was very easy to install and set up. It lets my components breathe and work to the nine without any issues. Set it up with dual boot of windows and a specially made kali linux version they did for me.
Cons: It's a princess lol meaning it gets a little fussy when I tend to mess with all the bios overclocking attributes. When it's in default mode it will power up in seconds. But when I tweak the board to do what I want it will have resistance but will eventually work its way thru. Just wish it wouldnt act like I poured water on it lol...And lastly the 2 usb ports......would have really liked 4, I did buy a usb hub. But I always find its much better to have just been able to plug straight into the source is all. Oh forgot, I want to use the imbedded hdmi for my sensor screen which worked fine when I first booted without my gpu. But since adding my gpu its as if the hdmi is turned off and cant figure out what setting if there is one as I have toggled pretty much everything on and off lol (not alw
Log in to write a review. Log in
Complete your setup
GIGABYTE B650M GAMING PLUS WIFI
$103.99
$159.99
GIGABYTE B650I AORUS ULTRA AM5
$202.49
$274.99

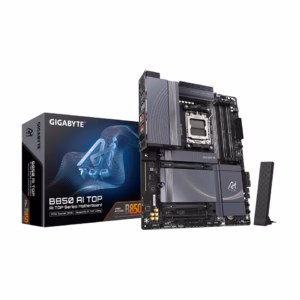

GIGABYTE B850 AI TOP AM5
$415.64
GIGABYTE B850 AORUS ELITE WIFI7 ICE AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch
$204.49
$254.99
GIGABYTE Z790 EAGLE AX LGA 1700
$149.98
$209.99
GIGABYTE B760M DS3H AX DDR4 LGA 1700
$139.99

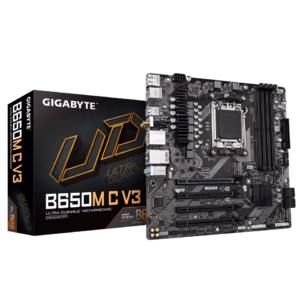

GIGABYTE B650M C V3 (rev. 1.0) AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, PCIe 4.0 M.2, PCIe 4.0, USB 3.2 Gen1 Type-C, 1GbE LAN, Q-Flash Plus, EZ-Latch
