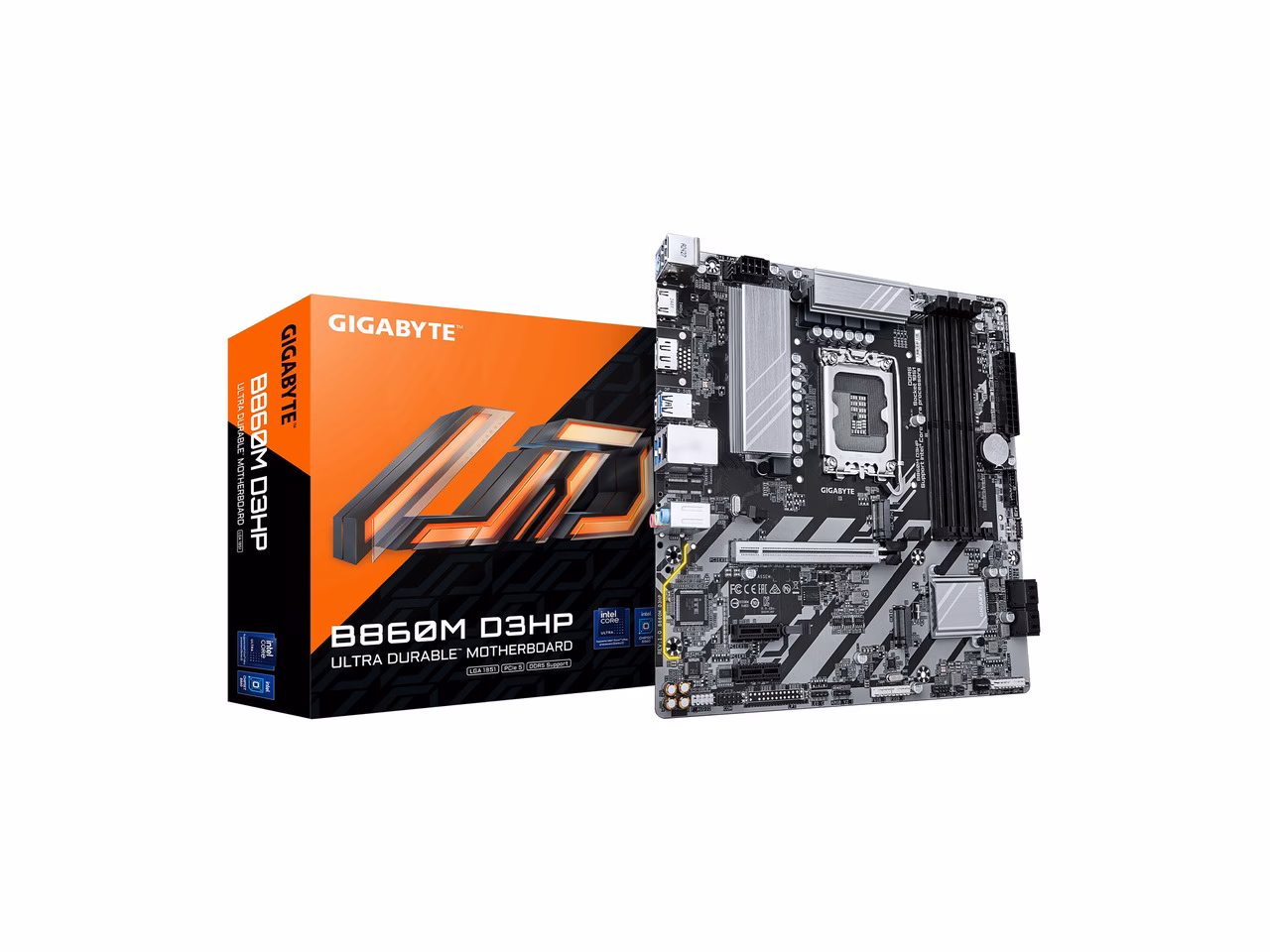

GIGABYTE B860M D3HP Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, USB-C, 1GbE LAN, EZ-Latch

Name: GIGABYTE B860M D3HP Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, USB-C, 1GbE LAN, EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-562
Price: 132.96 USD
Availability: InStock
Rating: 5.00 (1 reviews)

★★★★★ 5.0 1 review

Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 4*DIMMs

$132.96

B860M D3HP

Supports Intel Core Ultra Processors (Series 2)
DDR5 Compatible: 4*DIMMs
Power Design: 4+1+2+1, 50A PPAK VRM
Thermals: MOSFET Heatsink
Connectivity: PCIe 5.0, 2x M.2 Slots, USB-C
DIY Friendly: M.2 EZ-Latch

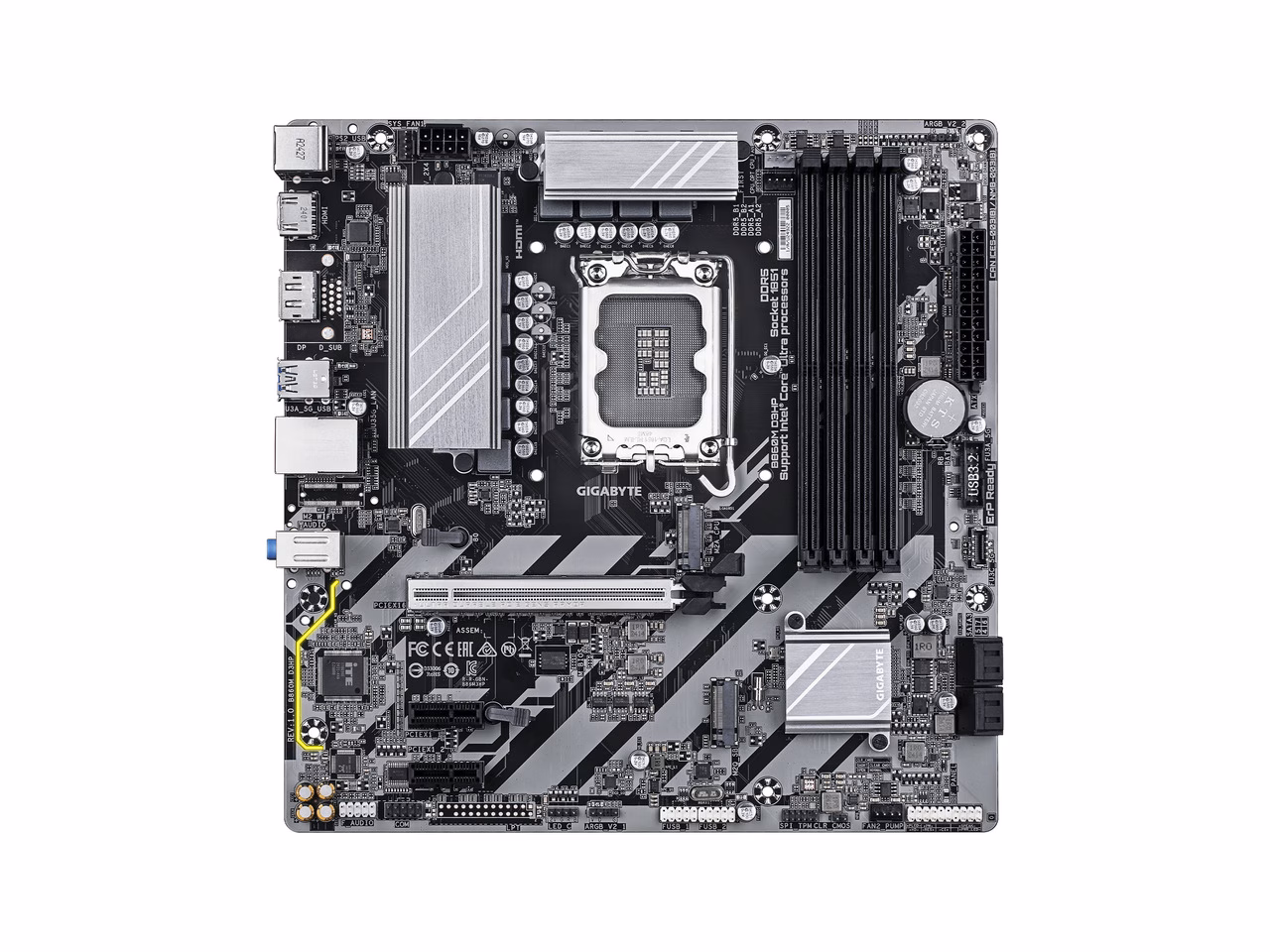

Key features

B860M D3HP

Performance

Thermal

Connectivity

DIY Friendly

Infinite Memory Performance

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. DDR5 Overclocking Up to

AI Overclocking For peak performance

AORUS AI SNATCH

Auto-Overclocking Software by AI model * Coming soon

AI SNATCH Engine

Advanced AI Overclocking Model

AI Design For MB signal enhancement

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (Series 2)
Chipset: Intel B860
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express 4.0 x16: Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels: 7.1 Channels
Max LAN Speed: 1Gbps

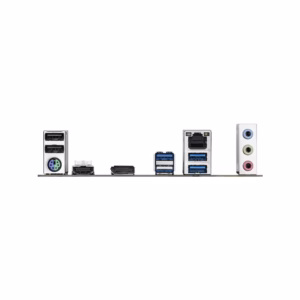

Back I/O Ports: 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel
BIOS Feature: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
MPN: B860M D3HP
UPC: 889523046937

Customer reviews

Based on 1 review

Write a review

5.0 ★★★★★

5 star 100% (1)
4 star 0% (0)
3 star 0% (0)
2 star 0% (0)
1 star 0% (0)

Anonymous September 23, 2025
★★★★★
GIGABYTE B860M D3HP Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, USB-C, 1GbE LAN, EZ-Latch

Budget MB for 1851

Its ok, but you will have to update BIOS in order to have all perks.
