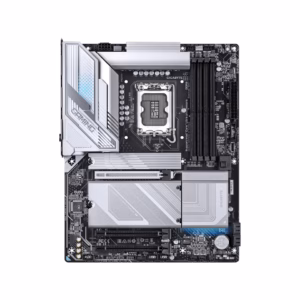

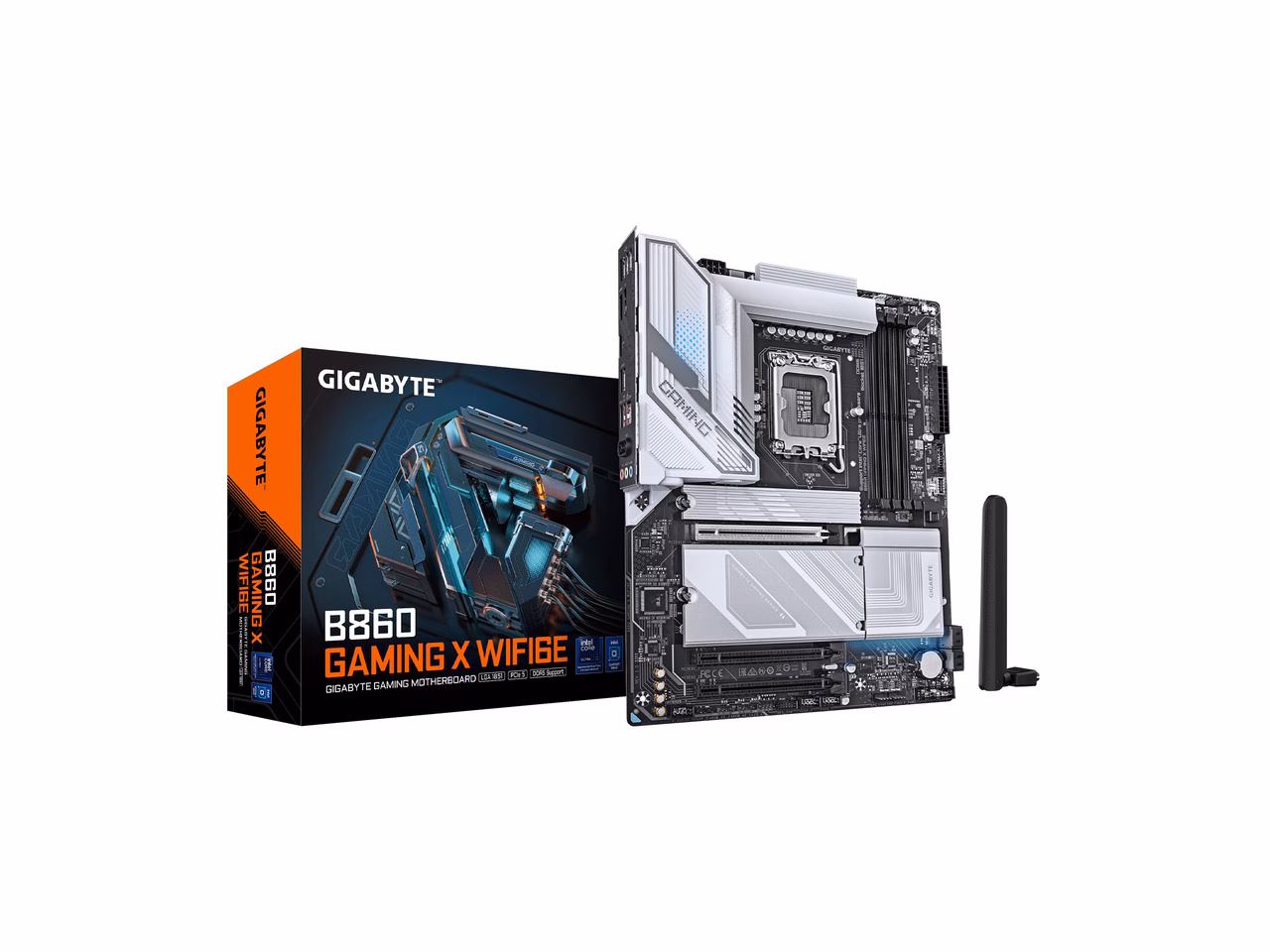

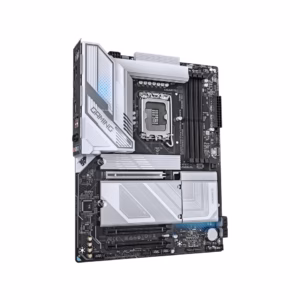

GIGABYTE B860 GAMING X WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch

Name: GIGABYTE B860 GAMING X WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 3x M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - GRC | PC Components & Gaming Peripherals
SKU: 13-145-554
Price: 144.98 USD
Availability: InStock

★★★★★ No reviews yet

Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 4*DIMMs

$144.98 ~~$189.99~~ Save $45.01

B860 GAMING X WIFI6E

Supports Intel Core Ultra Processors (Series 2)
DDR5 Compatible: 4*DIMMs
Power Design: 12+1+2+1, 50A PPAK VRM
Thermals: MOSFET Heatsink, M.2 Thermal Guard
Connectivity: PCIe 5.0, 3x M.2 Slots, USB-C
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug

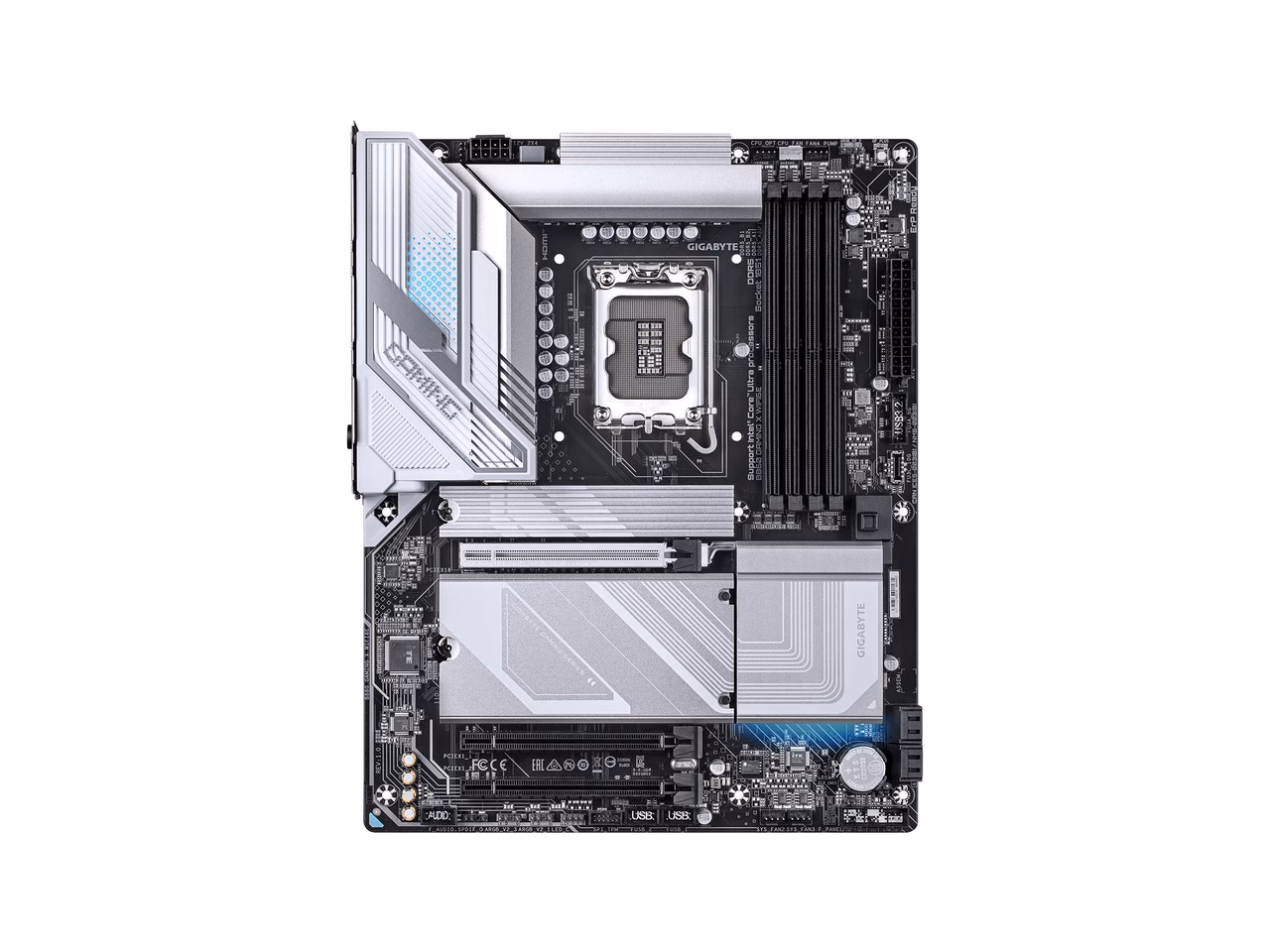

Key features

B860 GAMING X WIFI6E

Performance

Thermal

Connectivity

DIY Friendly

Infinite Memory Performance

Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. DDR5 Overclocking Up to

AI Overclocking For peak performance

AORUS AI SNATCH

Auto-Overclocking Software by AI model * Coming soon

AI SNATCH Engine

Advanced AI Overclocking Model

AI Design For MB signal enhancement

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1851
CPU Type: Intel Core Ultra Processors (Series 2)
Chipset: Intel B860
Number of Memory Slots: 4x288pin (DDR5)
Memory Standard: DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066
Maximum Memory Supported: 256GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
Memory Feature: Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16: Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
SATA RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels: 7.1 Channels
Max LAN Speed: 2.5Gbps
Wireless LAN: Wi-Fi 802.11 ax
Bluetooth: BLUETOOTH 5.3

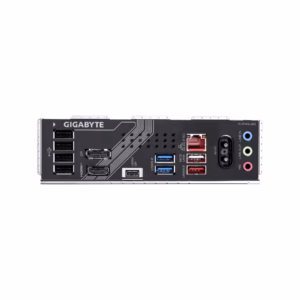

Back I/O Ports: 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors: 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pane
BIOS Feature: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: ATX
Dimensions (W x L): 12.0" x 9.6"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
MPN: B860 GAMING X WIFI6E
UPC: 889523046340
