GIGABYTE 1000 W Full Modular 80 PLUS GOLD Certified
$134.98
$159.99
Free U.S. shipping · 30-day returns
Free U.S. shipping · 30-day returns
GIGABYTE 850 W Full Modular 80 PLUS GOLD Certified
850W Capactiy with Single +12V Rail Supports PCIe Gen 5.0 graphics cards (12+4 Pin) & Intel ATX 3.0 Certified
$104.99
$149.99
Save $45
GP-UD850GM PG5W
- 850W Capactiy with Single +12V Rail
- Supports PCIe Gen 5.0 graphics cards (12+4 Pin) & Intel ATX 3.0 Certified
- 80 Plus Gold Certified
- ATX Form Factor
- Fully Modular Design
- Japanese Capacitors
Orders are handed to the carrier within 1 business day.
Free Shipping (3–5 business days) · Priority Shipping $9.90 (1–2 business days).
You have 30 days from the day your order is delivered to return unused items in their original condition and packaging. We pay for return shipping: you receive a prepaid label and nothing is deducted from your refund.
Once we receive and inspect the return, the refund goes back to your original payment method within 3 business days. Banks and card issuers may take another 3–10 business days to post it.
Each product is covered by its brand manufacturer's warranty. The term, what is covered, and how to make a claim are set by that manufacturer.
Email [email protected]. We reply within one business day.
Support covers shipping, returns, and order tracking.
Key features
KEY FEATURE
Support PCIe Gen 5.0 graphics cards
The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
TOTAL POWER EXCURSION
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

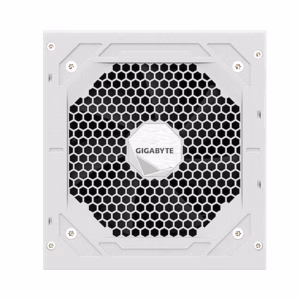

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. FAN ACOUSTIC
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

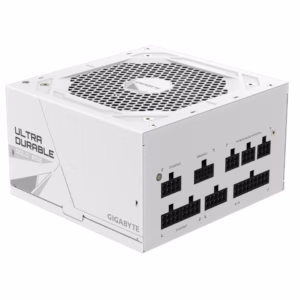

FULLY MODULAR DESIGN
All the white flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
Specifications
- Brand
- GIGABYTE
- Type
- ATX12V
- Maximum Power
- 850 W
- Fans
- 120mm Hydraulic Bearing(HYB)fan
- PFC
- Active
- Main Connector
- 20+4Pin
- PCI-Express Connector
- 1 x 16-Pin, 4 x 6+2-Pin
- SATA Power Connector
- 8
- Max PSU Length
- 150 mm
- Modular
- Full Modular
- Efficiency
- 90% at typical load
- Energy-Efficient
- 80 PLUS GOLD Certified
- Protection
- OVP/OPP/SCP/UVP/OCP/OTP
- Input Voltage
- 100-240 Vac (full range)
- Input Frequency Range
- 50/60 Hz
- Input Current
- 12A-6A
- MTBF
- >100,000 Hours
- Approvals
- BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE

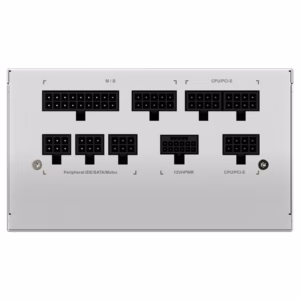

- Connectors
- ATX/MB 20+4 Pin x 1 EPS/ATX 12V 4+4pin x 2 PCI-e 6+2 pin x 4 PCI-e 16 pin x 1 SATA 5 pin x 8 Peripheral 4-pin x 3 Floppy 4-pin x 1
- Cable Spec
- Black Flat Cables
- Features
- The GP-UD850GM PG5W introduces a variety of high-quality materials and top-notch design. Enjoy unrivaled performance with Japanese capacitors, and a +12V Single Rail which will provide exceptional power output and stability for your system. Also, this power supply is PCI Gen 5 co
- Dimensions
- 140 x 150 x 86 mm
- MPN
- GP-UD850GM PG5W
- UPC
- 810075657838
Customer reviews
Based on 1 review
3.0
★★★★★
-
PDXBuilderB★★★★★
GIGABYTE 850 W Full Modular 80 PLUS GOLD Certified
Documentation included is absolutely terrible.
It's a really nice Power supply and the back of the supply is labeled which is nice. The cables feel sturdy and the introduction of the 600w cable is a nice addition for high end builds. It also comes with legacy ide lower cables for old hard drives/fans. Not including a warning they could cost you several thousand dollars in damages to your hardware is unforgivable. Would not recommend to a newbie builder.
Pros: Great Modular design really helps with cable management.
Cons: This is a WARNING that fortunately I was able to find on Google and is NOT DOCUMENTED in their manual. The modular power supply comes with two identical 12vx2 connectors. One has a dummy plug in the connector, one does not. If you don't notice it you could burn up your GPU. Like I said absolutely terrible documentation, cannot recommend to a newbie builder.
