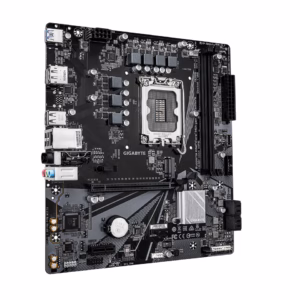

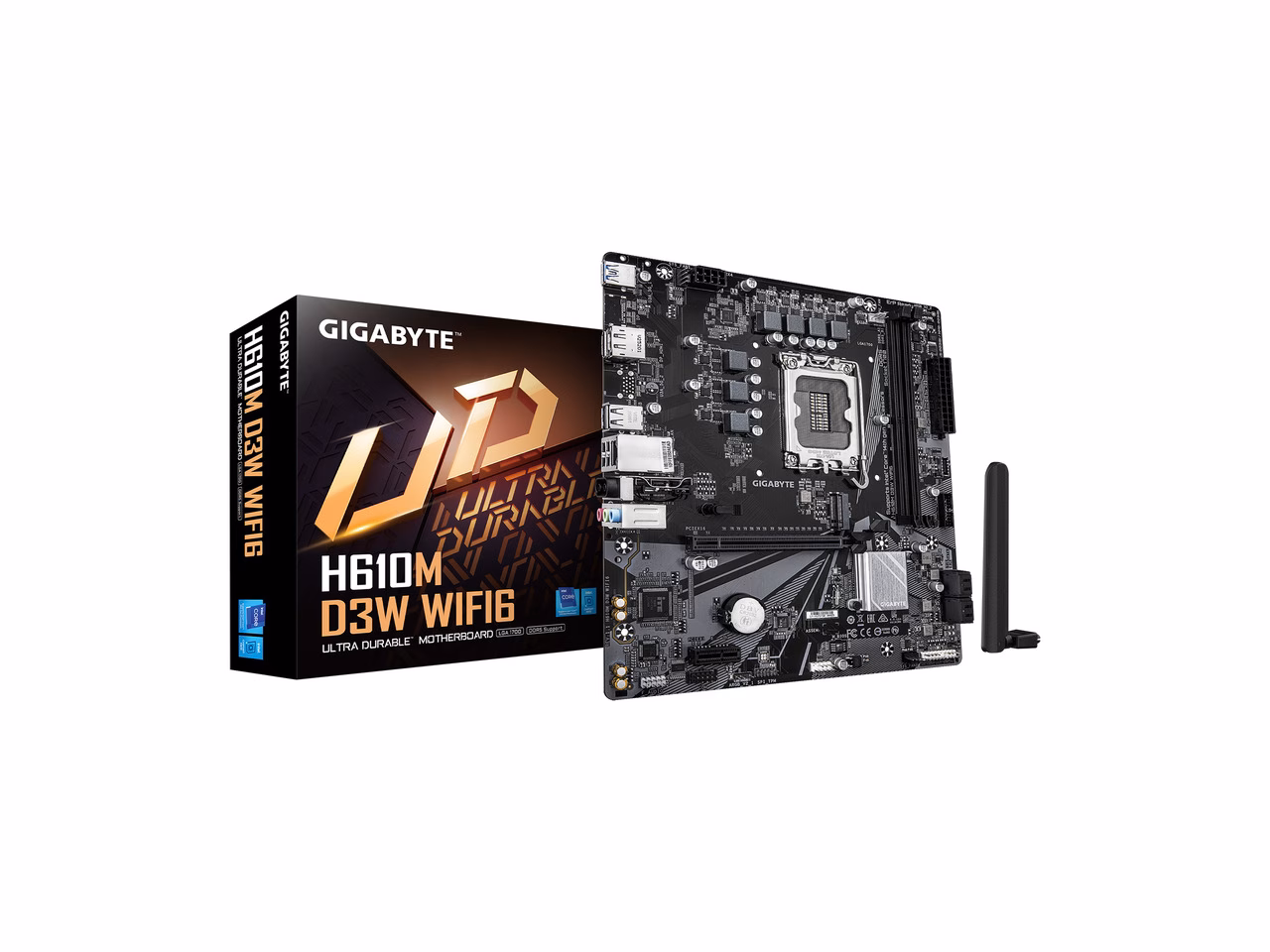

GIGABYTE H610M D3W WIFI6 LGA 1700

Name: GIGABYTE H610M D3W WIFI6 LGA 1700 - GRC | PC Components & Gaming Peripherals
SKU: 13-145-617
Price: 102.98 USD
Availability: InStock

★★★★★ No reviews yet

Intel LGA 1700 Socket: Ready to support 14th, 13th, and 12th Gen Intel Core Processors. Enhanced Power Solutions: Hybrid Digital 5+1+1 Power Phase with PCIe 4.0 Ready PCB and 50A Low RDS (on) MOSFETs for steady power delivery.

$102.98 ~~$119.99~~ Save $17.01

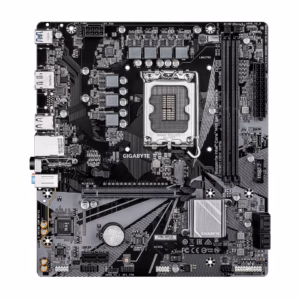

H610M D3W WIFI6

Intel LGA 1700 Socket: Ready to support 14th, 13th, and 12th Gen Intel Core Processors.
Enhanced Power Solutions: Hybrid Digital 5+1+1 Power Phase with PCIe 4.0 Ready PCB and 50A Low RDS (on) MOSFETs for steady power delivery.
Thermal Armor: Chipset heatsinks for better heat dissipation.
Boost Your Memory Performance: Compatible with DDR5 Memory and supports 2 DIMMs with Intel XMP Memory Module Support.
Comprehensive Connectivity: 1x PCIe Gen4 x16 reinforced slot, 1x PCIe 3.0 M.2 slot, 1x USB 3.2 Gen 1 Type-A, Front USB 3.2 Gen 1 Type-A, and Front USB 3.2 Gen 1 Type-C.
Smooth Online Experience: WIFI6 for smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps, GbE LAN, and Bluetooth 5.3.

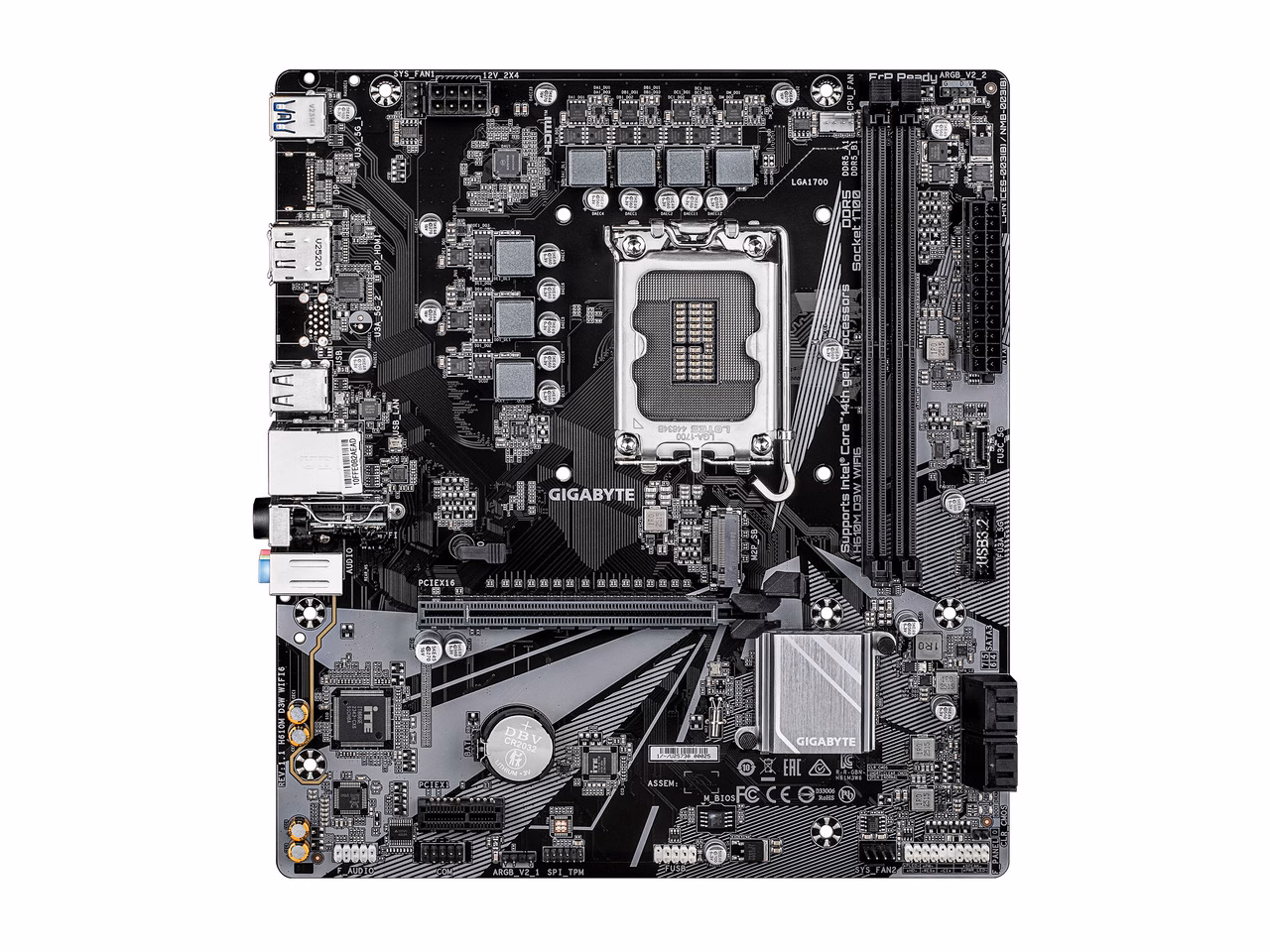

Key features

Specifications

Brand: GIGABYTE
CPU Socket Type: LGA 1700
CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipset: Intel H610
Number of Memory Slots: 2x288pin (DDR5)
Memory Standard: Support up to DDR5 5600 MT/s memory module
Maximum Memory Supported: 128GB
Channel Supported: Dual Channel
Memory Performance Profile: Intel XMP 3.0
ECC Supported: Yes
Buffer Supported: Un-buffered
Memory Feature: 14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM so
PCI Express 4.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1: Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Serial ATA (SATA): 4 x SATA 6Gb/s
M.2: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
Audio Channels: 7.1 Channels
Max LAN Speed: 1Gbps
Wireless LAN: Wi-Fi 802.11 ax
Bluetooth: BLUETOOTH 5.3

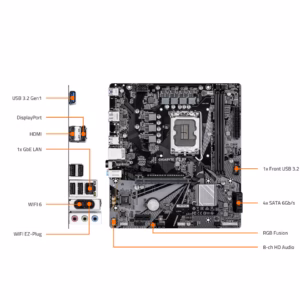

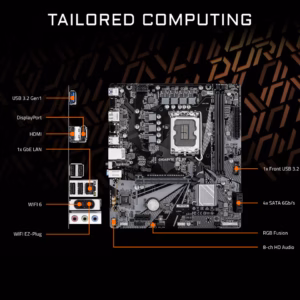

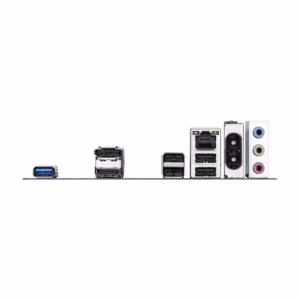

Back I/O Ports: 1 x DisplayPort 1 x HDMI port 1 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
Onboard USB: 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors: 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port
BIOS Feature: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor: Micro ATX
Dimensions (W x L): 9.6" x 8.7"
Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
MPN: H610M D3W WIFI6
UPC: 889523055090
